  • Customized 20m Lifting Electric Manual Scissor Lift Platform

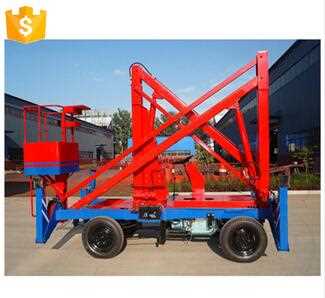

Customized 20m Lifting Electric Manual Scissor Lift Platform

Application: Widely; Operated: Safety and convenience; Usage: railway stations,airports, bridges, inquiries and so on; Material: High-duty Steel Structure;
Send Inquiry  Add to My Favorites

Product Details

Quick Details

Description

  • Place of Origin: Henan, China (Mainland)
  • Brand Name: Kcrane
  • Model Number: SJY
  • Lift Mechanism: Telescoping Lift
  • Lift Drive / Actuation: Hydraulic
  • Power: 1.5-4kw
  • Rated Loading Capacity: 300kg-3000kg
  • Min. Lifting Height: 1m
  • Max. Lifting Height: 20m
  • Table Size: 2000*1500mm
  • Overall Dimensions: 1200*800*1700mm---2500*1350*2300mm
  • Weight: 660kg-2220kg
  • Certification: ISO9001
  • Warranty: 12 Months
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Product name: Customized 20m Lifting Electric Manual Scissor Lift Platform
  • Control distance: up to 100m
  • Temperature: -35°C___+80°C
  • Receiver powder: AC
  • Color: Customizable
  • Certificate: CE/ISO9001
  • Application: Widely
  • Operated: Safety and convenience
  • Usage: railway stations,airports, bridges, inquiries and so on
  • Material: High-duty Steel Structure

MODEL

LIFTING HEIGHT(M)

LOADING CAPACITY

(KG)

TABLE SIZE(LXW) MM

MAX MACHINE SIZE(LXWXH) MM

POWER

(KW)

MACHINE WEIGHT(KG)

SJY0.3-4

4

300

1500X750

1850X900X1900

2.2

400

SJY0.3-6

6

300

1500X750

1850X900X1970

2.2

650

SJY0.3-8

8

300

1650X1000

2100X1200X2460

2.2

1200

SJY0.5-8

8

500

1980X1220

2500X1550X2380

2.2

1400

SJY0.8-8

8

800

2000X1220

2600X1550X2640

2.2

1700

SJY0.3-10

10

300

2100X1220

2700X1550X2380

2.2

1500

SJY0.5-10

10

500

2100X1220

2700X1550X2380

2.2

1600

SJY1.0-10

10

1000

2220X1220

2820X1720X2850

3

2380

SJY0.3-12

12

300

2550X1500

3150X1860X2850

2.2

2580

SJY0.5-12

12

500

2550X1500

3150X1860X2850

2.2

2780

SJY1.0-12

12

1000

2600X1500

3200X2015X3090

3

3580

SJY0.3-14

14

300

2990X1600

3600X2000X2850

2.2

3000

SJY0.5-14

14

500

2990X1600

3600X2000X2850

3

3200

SJY0.3-16

16

300

3230X1600

3700X2000X3030

3

3900

SJY0.3-18

18

300

3230X1600

3700X2000X3250

3

4500

SJY0.3-20

20

300

3230X1600

3700X2000X3450

3

5100



1.Considering security problem, the platform generally is equipped with antiskid insulated plastic water

groove boards, easy to change.

2. Mobile hydraulic lift with artificial mobile hydraulic lift, electric portable hydraulic lift, the other with a

hand pump, used for power failure.

3. Mobile and flexible, smooth lifting, easy operation, large capacity.

4. The series mobile hydraulic scissor lifting platform with a multi purpose, indoor and outdoor use can

bewidely used in railway stations,airports, bridges, inquiries, internal and external mechanical plantinstallation,equipment maintenance, construction and maintenance and so on.



 Main product:

 Hydraulic lift platform, Aluminium lift platform,GTTY, Fluctuation freight elevator and so on.

Customized 20m Lifting Electric Manual Scissor Lift Platform
