Quick Details
Description
Condition: New Cooling Type: Cross Flow Material: Superdyma & copper tupe Place of Origin: Jiangsu, China (Mainland) Brand Name: SANJIU Model Number: GHM-25 Voltage: 380V~480V Power(W): 3.7 KW Dimension(L*W*H): 2540*1940*2200MM Weight: 1020KGS Certification: CE;ISO9001:2008 Warranty: 18 Months After-sales Service Provided: Engineers available to service machinery overseas Cooling capacity: 125000kcal/h Water flow: 25ton Fan Power: 1.1kw x 2 Spray pump: 1.5kw Cooling Air Flow: 13000m3/h x 2 Heat Exchanger Material: Copper tupe Shell/Casing Material: Mg-Al-Zn Alloy Coated Steel Filler Material: MX75 PVC
Packaging & Delivery
Packaging Details: Standard packing ensures proper protection during transportation
Delivery Detail: Shipped in 30 days after payment

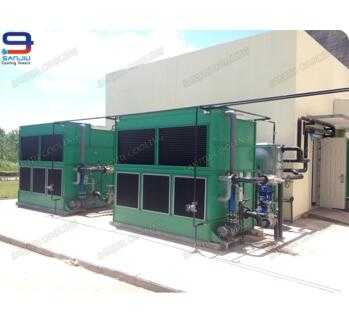

GHM Series Cross Flow Closed Water Cooling Towers
GHM Series is of capacities ranging from 25 to 300 tons/unit/hour, finished with alloy (Mg-Al-Zn) coated steel enclosure, stainless steel or copper heat exchange coils, and PVC fills. All raw materials are of virgin grade, with superior anti-corrosion features, and the longest service life in heavy duty environment. The enclosure can be also made in stainless steel 304 or 316L on customers’ request.
This series is of induced draft type. The cool air is inlet through a large surface of one side of the tower, then directed perpendicularly to the spray water flow through both the heat exchange coils and PVC stuff. Eventually the hot wet air is drawn upwards to the outside through the tower top removing the heat.
This cross-flow design is of high efficiency but lower initial and long term costs. Installation and maintenance is generally easy and economical. The towers dimensions can be customized to suit standard 20’ or 40’ containers to minimise delivery freight.
