Quick Details
Description
Main Description

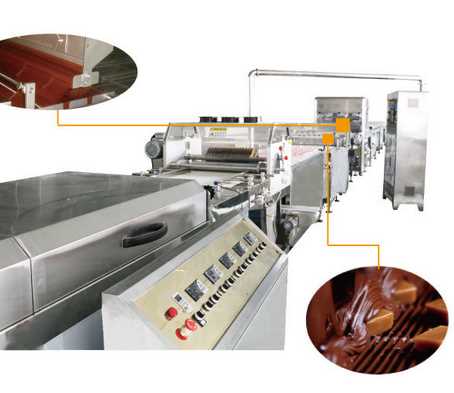

This chocolate enrober which consists of enrobing system, chocolate tank, pumping system, conveying system, cooling system, chiller and PLC controlling system is specialized in producing chocolate enrobed products, such as candy, cake, wafer, biscuit, etc. As per customer specific requirements, the enrobed forms can be customized to be full-enrobed, upper- enrobed and bottom-enrobed.
Main Principle
Materials feeding --PLC setting --Enrober working --Mesh conveying --Chocolate enrobing --Cooling air blowing --PU belt conveying --Cooling tunnel --Finished products
Main Parameter
| Model |
Mesh belt speed |
Conveyor belt width |
Conveyor
speed |
Cooling temperature |
Overall power |
Overall weight |
Overall dimension(mm) |
| K8016010 |
0-7(m/min) |
1200 mm |
0-6(m/min) |
0-10ºC |
12.5 kw |
4000kg |
L×1850×1800 |
| K8016010 |
0-7(m/min) |
1000 mm |
0-6(m/min) |
0-10ºC |
12 kw |
3600kg |
L×1650×1800 |
| K8016010 |
0-7(m/min) |
900 mm |
0-6(m/min) |
0-10ºC |
9.17 kw |
3200kg |
L×1550×1800 |
| K8016010 |
0-7(m/min) |
800 mm |
0-6(m/min) |
0-10ºC |
9.17 kw |
2800kg |
L×1400×1800 |
| K8016010 |
0-8(m/min) |
600 mm |
0-7(m/min) |
0-10ºC |
9.17 kw |
2300kg |
12400×940×1800 |
| PS: Kingunion Group Holds The Previlage Of Customizing & Changing Design By Technology Innovation Updating |
Main Feature
1. Adopting full automatic PLC controlling sysytem ensures the enrobing with accuracy and the stable working performance.
2. More enrobing designs options: full-enrobing, half-enrobing, upper-enrobing, bottom-enrobing, more products enrobing applications.
3. All Food Grade 304 SS makes materials cater HACCP CE FDA GMC SGS International Standards.
4. Imported electric appliances, such as Omron, Siemens, Schneider, etc. ensure the stable working performance without defaults.
