Quick Details
Description

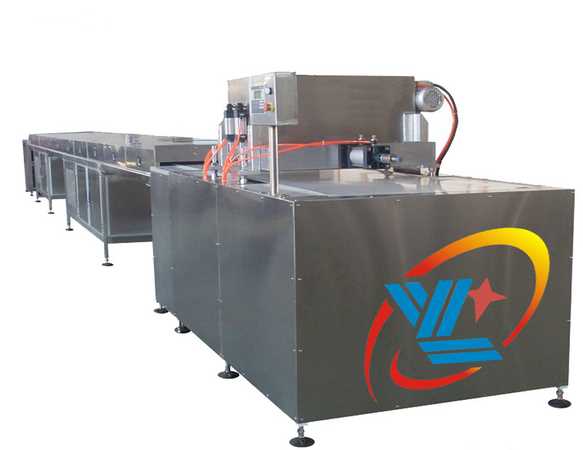

The machine is specially equipment to produce small granule chocolate .The chocolate liquid dripping directly onto the PU conveyor belt and moves into the cooling tunnel for cooling, according to the roller under the conveyor belt , With automatic fall of chocolate granules.
Technical date
| Conveyor belt width |
600-1200mm (Optional) |
| Conveyor belt speed |
13rpm |
| Cooling tunnel working temperature |
0-10ºC |
| Pour interval time |
3.5-20 second (adjustable) |
| Refrigeration capacity |
16970 w/h*2 (evaporation temperature:-5ºC, condensation temperature:30ºC) |
| Total Power |
45.20kg |
| Compressed air consumption |
0.6m3/min |
| Outlet dimension |
16000*1600*1750mm |
| Weight |
2500kg |
Our Characteristic
1.Youlu machinery with many years experience to make chocolate machine
2.We have strong technical force, advance technology team
3.Provide the full project solution for chocolate machine
4.Provide the really economic chocolate machine for buyer
5.Provide the best quality and service for buyer
Ningbo Youlu Machinery Technology Co., Ltd. is a professional manufacturer and an exporter of candy machine, chocolate machine, candy package machines, candy mould, Gummy candy starch tray (wooden starch tray, plastic starch tray, fiberglass starch tray). With many years experience research and development of candy machine and chocolate machine. We have strong technical force, advance technology, product quality has high reputation in the market. Our starch tray service for starch mogul plant such as NID, BOSCH, MAKAT, WDS. Our starch tray are exported to many countries, Such as Europe and America, South African, Middle East, South America, Southeast Asia.
Our company attaches great importance to innovation, integrity management. On the basis of quality first, customer first and serving customers by heart. We will continuously work on scientific research and innovation, provide customers with better and better service. We warmly welcome customers worldwide to our company to conduct and consult.
Let's March forward hand in hand and create a bright future together
