Main Technical Parameters (Performance meet the GB/T19519-2004, IEC61109)

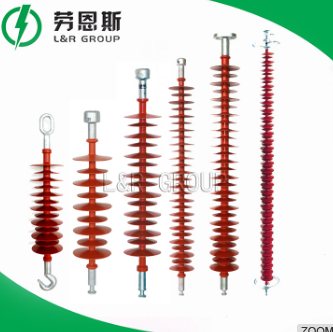

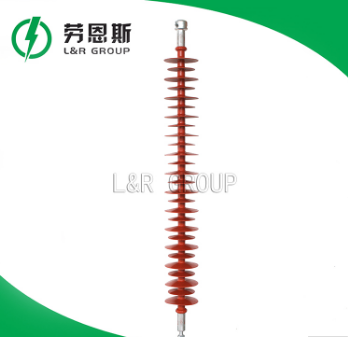

6~500kV Composite Suspenion Insulator
| Product Model |
Rated Voltaqe (kV) |
Rated mechanical bending load (kN) |
Structure Height H.( mm) |
Minimum Arc distance Li.(mm) |
Min.
creepage distance Lc.(mm)
|
Diameter of shed D.(mm) |
Lightning impulse withstand voltage (peak) (kV) |
P.F.Imin wet withstand voltage (Virtual value) (kV) |
Connect size |
| FXBW4-6/70 |
6 |
70 |
270± 15 |
80 |
260 |
148/118 |
60 |
25 |
16 |
| FXBW4-10/70 |
10 |
70 |
400± 15 |
220 |
480 |
148/118 |
75 |
42 |
16 |
| FXBW4-10/100 |
10 |
100 |
430 ± 15 |
220 |
480 |
148/118 |
75 |
42 |
16 |
| FXBW4-35/70 |
35 |
70 |
650± 15 |
450 |
1320 |
148/118 |
230 |
95 |
16 |
| FXBW4-35/100 |
35 |
100 |
650± 15 |
450 |
1320 |
148/118 |
230 |
95 |
16 |
| FXBW4-66/70 |
66 |
70 |
900± 15 |
710 |
2140 |
148/118 |
410 |
185 |
16 |
| FXBW4-66/100 |
66 |
100 |
940± 15 |
710 |
2140 |
148/118 |
410 |
185 |
16 |
| FXBW4-110/100 |
110 |
100 |
1240± 15 |
1000 |
3315 |
148/118 |
550 |
230 |
16 |
| FXBW4-110/160 |
110 |
160 |
1320± 15 |
1000 |
3315 |
148/118 |
550 |
230 |
R20 |
| FXBW4-145/120 |
145 |
120 |
1480 ± 30 |
1240 |
4123 |
148/118 |
725 |
355 |
16 |
| FXBW4-220/100 |
220 |
100 |
2240 ±30 |
1970 |
6300 |
148/118 |
1000 |
395 |
16 |
| FXBW4-330/160 |
330 |
160 |
2990 ±30 |
2600 |
9075 |
148/118 |
1425 |
570 |
R20 |
| FXBW4-220/160(210) |
220 |
160/210 |
2320(2440) ±3( |
1970(2050) |
6300(7290) |
148/118(195/158/128) |
1000 |
395 |
R20 |
| FXBW4-330/160(210) |
330 |
160/210 |
3480 ±30 |
3100 |
11080 |
195/158/128 |
1425 |
570 |
R20 |
| FXBW4-500/160(210) |
500 |
160/210 |
4450 ±30 |
4075 |
14860 |
195/158/128 |
2050 |
740 |
