Quick Details
Description

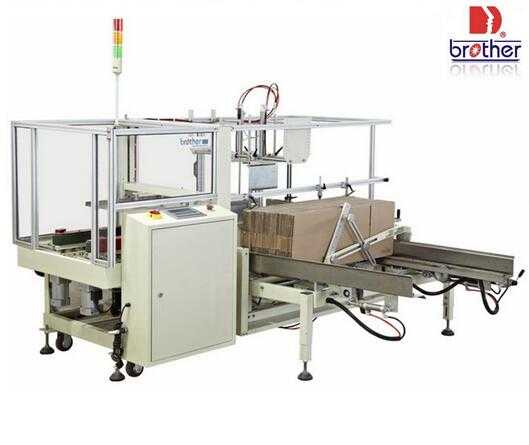

- Model NO.: CES4035A
- Automatic Grade: Automatic
- Application: Cosmetics, Cleaning, Detergent, Drinks, Skin Care Products, Hair Care Products
- Type: Packaging Sealing Machine
- Carton Size: Adjustable
- Specification: CE ISO9001
- HS Code: 84224000
- Packaging: Cartons
- Packaging Material: Plastic
- Usage: Outpacking
- Material Type: PP Tape
- Trademark: Brother
- Origin: Wenzhou, China
Vertical storage is adopted for storaging carton blanks, for which carton blanks can be added at any time without stopping the machine.
It's suitable for forming and sealing carton of the same size. If carton size need to be changed, the operator should adjust the machine manually ( finishing in 2-3minutes).
It's rationallly designed so that the forming, folding and sealing process are accomplished simultaneously.
All parts are precise and durable, without causing any vibration in running.
Running steadily with long life.
Light in weight
High performance and speed
|
Model
|
CES4035A
|
|
Speed
|
8-10 carton/min
|
|
Table Height
|
Min.H600mm-Max.H720mm
|
|
Carton Size
|
L200-450/W150-400/H100-350mm
|
|
Width Of Tape
|
36mm,48mm,50mm,60mm
|
|
Power Supply
|
220V/50-60Hz
|
|
Air Source
|
> 500l/min, 0.4-0.8mpa
|
|
Machine Size
|
L2000×W1900×H1450mm
|
|
Machine Weight
|
550kg
|
BROTHER PACKING MACHINERY Co., Ltd, is an excellent manufacturer and supplier of packing machines in China, combined with research & development, design, manufacture and sales. The company has complete equipment, powerful technical force, strict management, so holds high production efficiency. We have passed quality system certification ISO9001: 2000, and the products are CE and Korea Safety certificated. We can offer a wide range of packing machines with complete models, and can design and improve our products as per customers' Requirements. Main products include:
SM06 series semi-automatic strapping machine, AP8060 series automatic strapping machine;
FXJ & AS series automatic carton sealer, CES series automatic carton erector;
DZQ series vacuum (gas-flushing) packing machine, BSD series shrink packing machine;
SF & FRD series multifunctional film sealer, PCS/PFS series impulse heating sealer;
DXD series automatic verical / horizontal packing machine; HP series printing machine;
FRG series cup filling-sealing machine; TB / BX series skin / blister sealer.
