Quick Details
Description

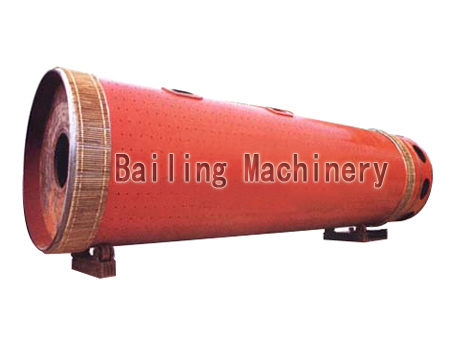

Cement Mill is composed of feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and power cabinet). The quill shaft adopts cast steel part and the liner is detachable. The turning gearwheel adopts casting hobbing process and the drum is equipped with wear-resistant liner, which has good wear-resistance. The machine is with stable and reliable working condition. Moreover, according to different materials and discharging methods, there are dry ball mills and wet ball mills for choice.
|
Model
|
Capacity (t/h)
|
Mill
form
|
Transmission form
|
Power (kw)
|
Reducer
|
Weight (t)
|
Remarks
|
|
Model
|
Ratio
|
|
￠2.2×7m
|
8-9
|
Open Flow
|
Brim
|
380
|
ZD70
|
5
|
54
|
|
|
￠2.2×7.5m
|
10-11
|
Open Flow
|
Brim
|
380
|
ZD70
|
5
|
63
|
|
|
￠2.2×8m
|
10-12
|
Open Flow
|
Brim
|
380
|
ZD70
|
5
|
65
|
|
|
￠2.2×9.5m
|
14-16
|
Open Flow
|
Brim
|
475
|
ZD70
|
5
|
70
|
|
|
￠2.4×10m
|
19-19
|
Open Flow
|
Brim
|
630
|
JR75
|
5.64
|
94.5
|
Without motor
|
|
￠2.4×11m
|
19-21
|
Open Flow
|
Brim
|
630
|
RZD80
|
6.3
|
99.2
|
Without motor
|
|
￠2.4×13m
|
21-23
|
Open Flow
|
Brim
|
800
|
MBY710
|
7.1
|
115.2
|
Without motor
|
|
￠2.6×13m
|
28-32
|
Open Flow
|
Brim
|
1000
|
MBY800
|
7.1
|
148
|
|
|
￠2.6×13m
|
28-32
|
Open Flow
|
Brim
|
1000
|
MFY100
|
19.5
|
101.73
|
|
|
￠3×12m
|
32-35
|
Open Flow
|
Brim
|
1250
|
MBY900
|
7.1
|
168.6
|
|
|
￠3×13m
|
34-37
|
Open Flow
|
Brim
|
1400
|
MBY900
|
7.1
|
172.26
|
|
|
￠3.2×13m
|
45-50
|
Open Flow
|
Brim
|
1600
|
MBY1000
|
7.1
|
196.26
|
|
|
￠3.8×13m
|
60-62
|
Open Flow
|
Brim
|
2500
|
MFY250
|
16.5
|
204
|
|
|
￠4.2×13m
|
85-87
|
Open Flow
|
Brim
|
3530
|
JQS3550
|
15.6
|
254
|
|
Henan Bailing Machinery Co., ltd is a professional manufacturer of mining machinery in China. Having 44,000 square meters factory, we take crushers, beneficiation equipments, mills, screens, cement production line and dryers as our main products, which are sold to more than 30 countries and regions in Africa, Middle East, North and South America, South Asia, Hong kong and Taiwan regions.
Taking quality as the soul of our company, we adopt advanced technology and bulid a strict quality control system. And we provide not only good quality products, but also strong tech assistance from design, production to installation, commissioning and debugging.
