Quick Details
Description
- Brand Name:TRUEPRO
- Model Number:CWC-CNC-95

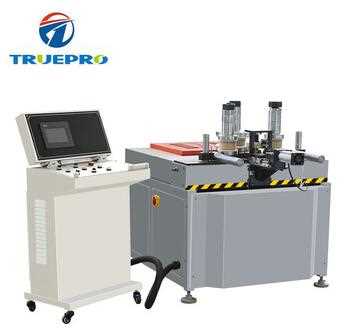

- Product name:Aluminium door and window making bending machine
- Model:CWC-CNC-95
- Power supply:380V 50Hz
- Min.diameter of bending:100mm
- Input power:3kw
- Max.diameter of rolls:180mm
- Top roll runout:180mm
- Max.width of profile:150mm
- Rotation speed of shaft:1~8r/min
- Overall dimension:1150*1050*1050mm
Main Feature:
--The machine is mainly used for bending for metal materials ,such as Iron,copper and aluminum and special-shaped material.
It is ideal equipment of curved process for furniture manufactures,wrought iron engineering manufacturers,aluminum alloy doors and windows manufacturers,decorative steel structure enterprise.
Main Technical Parameter:
|
Model
|
CWC-CNC-95
|
|
Power supply
|
380V 50Hz
|
|
Input power
|
3kw
|
|
Min.diameter of bending
|
100mm
|
|
Max.width of profile
|
150m
|
|
Max.diameter of rolls
|
180mm
|
|
Hydraulic cylinder pressure
|
160KN
|
|
Roller-holding shaft diameter
|
40mm
|
|
Rotation speed of shaft
|
1~8r/min
|
|
Positioning precision
|
0.05mm
|
|
Top roll runout
|
180mm
|
|
Overall dimension
|
1150*1050*1050mm
|
Our company is a manufacturer of window machine, insulating glass processing machine and curtain wall machine with well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in building trade and other industries. Hope we can cooperate with you.
