Quick Details
Description
wgshbd@mec.com.cn

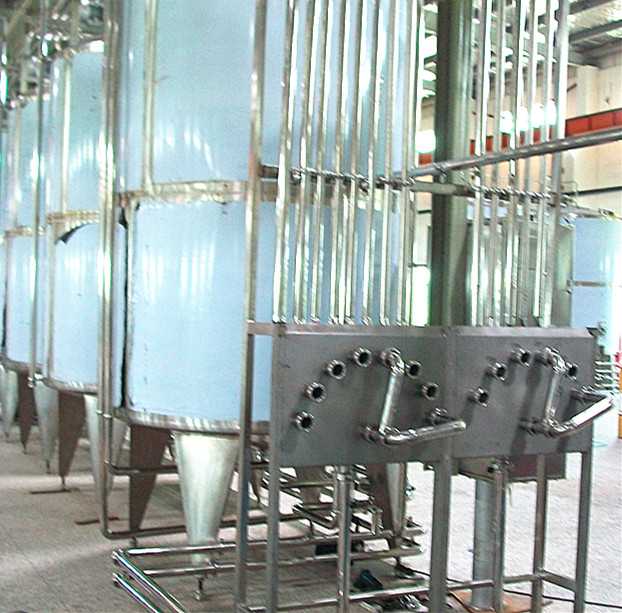

CIP station is important equipment in dairy, juice, beverage and all liquid product process line for clean and disinfection of every equipment and pipes.
It consists of :
Tanks, its cubage may be from 500L/each to 5000L/each depend on the scale of dairy process line.
Hot water tank has Vertical, PU insulating, SS304 inside and outer side wall, with manhole, vent, adjustment foot, legs, outlet with valve, temperature meter.
Acid tank has Vertical, PU insulating, SS304 inside and outer side wall, with manhole, vent, adjustment foot, legs, outlet with valve, acid diaphragm pump.
Caustic tank has Vertical, PU insulating, SS304 inside and outer side wall, with manhole, vent, adjustment foot, legs, outlet with valve, temperature meter, caustic diaphragm pump.
Water tank, Vertical has PU insulating, SS304 inside and outer side wall, with manhole, vent, adjustment foot, legs, outlet with valve, temperature meter.
Tubular heat exchanger, to heat the cleaning solution to requirement temperature, 75-85°C
Centrifugal supply pump in high head, supply the CIP solution to each dairy equipment.
Swing plate, to distribute the CIP solution to each machines
Control panel, include temperature controller, steam control system, pump control. If it's complete automatic it's controlled by PLC to operate CIP program. It uses digital to control and display temperature, PH of caustic and acid
One set of pipes, valves, and fittings
Two CIP return pumps are liquid ring pump.
Pipe filter on return pipe etc.
Liaoning MEC Group Co., Ltd. is located in China’s famous coastal Dalian city. The company is a comprehensive group, the business scope includes international project contracting, international trade and domestic trade, environmental engineering, e-commerce, real estate and property management, warehousing and logistics , and investment.
The group company was founded in 1994. Up to now, the average annual turnover is around 2.2 billion yuans, of which, the volume of import and export amounts for more than USD 250 millions. The company keeps business relations with several thousand firms and enterprises home and abroad.
All along with the development during the past twenty years, we never forget our responsibilities to the society. The company is persistent in providing supports to the public welfares, its year in year out public donation activities have won broadly recognitions from the social communities as well as governmental authorities.
We adhere, with the company’s good HR resources and scientific management models, the ideas of advance decision making, moderate operation, prudent management, sustainable development, and abide by the core values of being realistic, to create and to share. We do our best to provide our customers with added service.
