Quick Details
Description
- Type: Sealing Machine
- Condition: New
- Application: Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
- Packaging Type: Cartons
- Packaging Material: Wood
- Automatic Grade: Automatic
- Driven Type: Electric
- Voltage: 220V
- Power: 50HZ 500W
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: CHYAN
- Model Number: CHY-50PC N22
- Dimension(L*W*H): L600 X W 500 X H500mm
- Weight: 210KG
- Certification: CE
- After-sales Service Provided: Engineers available to service machinery overseas

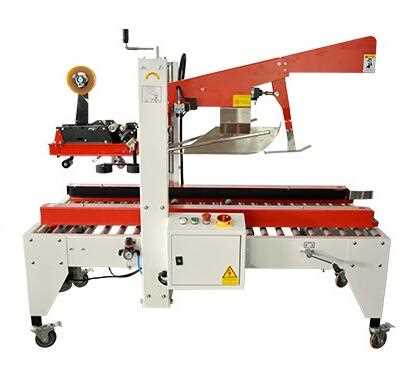

After adjusting, this CHY-50PC N20 flap folding fold top and bottom carton sealing machine folds the top flaps and seal both the top and bottom with tape automatically.
|
Adhesive Tape
|
W48mm,W60mm,W75mm
|
|
Conveyor Speed
|
20 meter per minute
|
|
Max Package Size
|
L600 x W500 x H500 mm
|
|
Min Package Size
|
L200 x W120 x H 100 mm
|
|
Power
|
220V 50Hz 0.4KW
|
|
Air Compressor
|
0.6 MPA
|
|
Dimensions
|
L1870 x W945 x H1530 mm
|
1. Warning device.
2. Can be adjusted for different products.
3. The components are tested for thousand time
4. The tape track is even, straight and looks good.
5. Strong applicability and high efficiency
6. Easy operation, low failure, long service time.
Dongguan Chyan Machinery Co.,ltd
Chyan was founded in 2011, The high-tech firm which have been recognized by Government , and have passed ISO9001:2008 certificate, as well as CE certificate.
With advanced production equipment, powerful technology force, strict management, strong development ability of the products and high working efficiency, we specialize in producing and selling various packaging machines: sealing shrink packing machines, strapping machines, carton sealers, stretch wrapping machine, packing lines, conveyors etc. and also exported to several countries and regions. All machines are greatly reputed by the users.
