Quick Details
Description
- Type: Wrapping Machine
- Condition: New
- Application: Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Apparel, Textiles
- Packaging Type: Case
- Packaging Material: Wood
- Automatic Grade: Automatic
- Driven Type: Electric
- Voltage: 380V/60HZ
- Power: 22KW
- Place of Origin: Jiangsu, China (Mainland)
- Brand Name: JIAJUN PACK

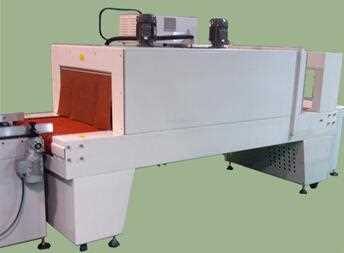

- Model Number: CHL-8040
- Dimension(L*W*H): 2300*1600*1600 mm
- Weight: 1100KG
- Certification: ISO9001
- After-sales Service Provided: Engineers available to service machinery overseas
- colour: white
Specifications
1.DUPONT sealing knife ,steady
2.Import photoelectric detection, precisely
3.automatic feeding
4.adopt unmanned connections
FEATURES
CHL-8040 adopt advanced double side sealer technical, continues sealing. Product length is unlimited
Adopt electric Touch screen, imported OMRON PLC to integrated mechanism with electricity and pneumatic
Adopt most advanced side sealing device, wrapper length is unlimited
Achieve excellent sealing effect
Especially designed for the big and heavy wrapper
The sealing line can be set any position of the wrapper. the shrink film thickness 0.03-0.06mm is suitable
According to customer request, can add front and back conveyor, and color film locating system
SM-8040 adopt double fan motors make the heat air inside the tunnel evenly
Different products combination can be sealed perfectly and automatically
Closed packing for products to realize water proof and light proof
Adopt PE film to meet long distance transport and won't broken after frequent handling
Remove the shrinking tunnel. products could be packed by no poison PE shrinking film
DESCRIPTION
Suitable for floor boards, ceramics, furniture, electric appliances or other shapes of products closed shrinking packing
|
Model
|
CHL-8040
|
SM-8040
|
|
Machine dimension L×W×H(mm)
|
2300×1600×1600
|
2800×1100×1690
|
| |
|
|
|
Tunnel dimension L×W×H(mm)
|
/
|
1800×800×400
|
|
Max packing size L×W×H(mm)
|
L Unlimited×1000×250
|
1500×600×300
|
| |
|
|
|
Sealing size L(mm)
|
1000
|
/
|
|
Temperature(0C)
|
0-200
|
0-400
|
| |
|
|
|
Height of work table (mm)
|
850±50
|
850±50
|
|
Packing speed(Pcs/min)
|
6-12
|
40-60
|
| |
|
|
|
Net weight (kg)
|
1100
|
700
|
|
Power (kw)
|
3
|
37
|
| |
|
|
|
Power supply
|
3PH 220V/380V 50/60Hz
|
3PH 220V/380V 50/60Hz
|
|
Air pressure (kg/cm2)
|
6-8
|
/
|
| |
|
|
|
Applicable film
|
PE
|
PE
|
Established in 1998,SuZhou Jiajun Packing Machinery Co.,Ltd is a leading company specializing in wrapping machine,carton sealer,carton erector and packing line . We have successively passed ISO9001 certification, CE certification.good quality products have won good reputation of many customers both at home and abroad.
We have our own R & D center, unique showroom, professional design team, providing good quality products consistently. The main product series include: sealing machine series, carton erector series, wrapping machine series, strapping machine series, shrink machine series , vacuum packing machine series , packaging lines and a variety of packaging materials.
Competitive price, good quality product, warm-hearted service is our aim, we welcome your inquiry and will serve you with full sincerity.
