• CE standard Insulating Glass Production Line machine/double glass processing machine

CE standard Insulating Glass Production Line machine/double glass processing machine

Glass Production Line machine/double glass processing machine

Product Details

Quick Details

Description

Quick Details
Condition:New
Machine Type:Insulating Glass Production Line
Production Capacity:1200 Pcs/day
Place of Origin:Shandong, China (Mainland)
Brand Name:PARKER
Model Number:IGV27-S
Voltage:380V 50HZ
Power(W):20.5KW
Dimension(L*W*H):23000mm x 3000mm x 3600mm
Weight:4000kg
Certification:CE
Warranty:1 Year
After-sales Service Provided:Engineers available to service machinery overseas
glass washing::available
glass drying ::available
glass assembly:available
glass glazing ::available
low-e glass:available
tempered glass:available
Washing glass Thickness::3-12mm
Max. process dimension:2500mm x 3200mm
glass edging:available
glass grinding:available
Packaging & Delivery
Packaging DetailsAs order
Delivery TimeShipped in 5 days after payment
Product Description



Model: IGV25-S



Features:



  • ØThe electric component, sensor and PLC auto-controlling is imported low power supply;
  • ØThe appliance is efficient for the operator can input the order continuously;
  • ØTouching screen is imported originally. It is easy to operate. The process and fault can be showed automatically;
  • ØIt is controlled by punctuated system which is energy-saving. The inspecting and combining speed up when other non operating parts are intelligent-asleep;
  • ØIt can produce big and small scale insulating glass(Optional)
  • ØCleaning Part is consisted of stainless steels. Three pairs of brush can work separately. It can recognize the LOW-E glass automatically. So it can protect the LOW-E glass from scratching.
  • ØThis machine adopts inverter control transmission motor. So it can easily slow down and accelerate.
  • ØThis machine has the self- diagnosis function, which is easy for check the error.
  • ØGermanic technology is adopted in the whole line and main components are imported from world famous brand since it will be stable, convenient to maintain, and easy to handle.
  • ØInsulating glass like standard glass, overlength glass, coated glass, low-E glass, big and small glass, varity glass, special shape glass, triple glass, etc can be produced.
  • ØThe carbon steel plate with high strength and accuracy is adopted as the whole back plate, since it’s laser cut and CNC bent with high strength and easy to install.
  • ØThe convey part is equipped with safe guard for easier maintenance and safety.



Washing and drying section.



  • ØThis section is equipped with stainless steel to prevent any rust.
  • Ø7 motors are equipped. There are 6 motors supplying 6 brushes and 1 motor supplying the rubber. There are 3 separated tanks outside each pair of brushes with thermostatic heating system to improve the cleaning effect. The first pair of brush won’t work when low-E or tempered glass processed for protection the film.
  • ØGermany industrial plastic(avoid getting rusty) bearings are used so there is no need to maintain daily.
  • ØThis machine adopts high pressure fan, equipped with special air knife with bigger angle others which can improve the drying effect. Multistage frequency conversion control is exclusively used, and multi-speed revolution optimization function can realize all kinds of size of glass movement.
  • ØBig color touching screen can lively monitor working stage of each section, equipped with self-diagnosis function, easy to maintain, also with remote diagnosis function.



Assemblingsection



  • ØServo motor and ball screw is adopted for locations and assemblingfor the high accuracy.
  • ØThere are 22 suckers with sensor switch under each in the assembling cabinet. The glass will touch the sensor switch when coming by, then the sucker up the touched sensor switch will suck the glass. Other suckers with sensor switch beingnot touched won’t work.
  • ØThe distance between two boards of the pressing cabinet can be adjusted automatically according to the thickness and size of the glasses.



Parameter:



  • ØVoltage:

380V   50HZ

  • ØPower:

20.5KW

  • ØAir consumption:

260L/min

  • ØMax. process dimension:

2500mm x 3200mm

  • ØMin. process dimension:

250mm x 450mm

  • ØMax. thickness:

40mm

  • ØWashing Glass Thickness:

3-12mm

  • ØConvey speed:

12-40m/min

  • ØCleaning Speed:

0-8m/min

  • ØMax. processing speed:

40m/min

  • ØOverall dimension:

23000mm x 3000mm x 3600mm





glass washing: available
---------------------------------------------------------------------
glass drying :available
---------------------------------------------------------------------
glass assembly :available
---------------------------------------------------------------------
glass glazing : available
---------------------------------------------------------------------
low-e glass :Coated glass
---------------------------------------------------------------------
tempered glass : from 4-25mm
---------------------------------------------------------------------
Washing glass Thickness: 3-12mm
---------------------------------------------------------------------
Max. process dimension:2500mm x 3200mm
---------------------------------------------------------------------
glass edging : available
---------------------------------------------------------------------
glass grinding :available
---------------------------------------------------------------------
glass beveling : available
---------------------------------------------------------------------
glass drilling :available
---------------------------------------------------------------------
glass bending:unavailable
---------------------------------------------------------------------
double glass :available
---------------------------------------------------------------------
triple glass: available
---------------------------------------------------------------------
step glass : available
---------------------------------------------------------------------
big and small glass:available
---------------------------------------------------------------------

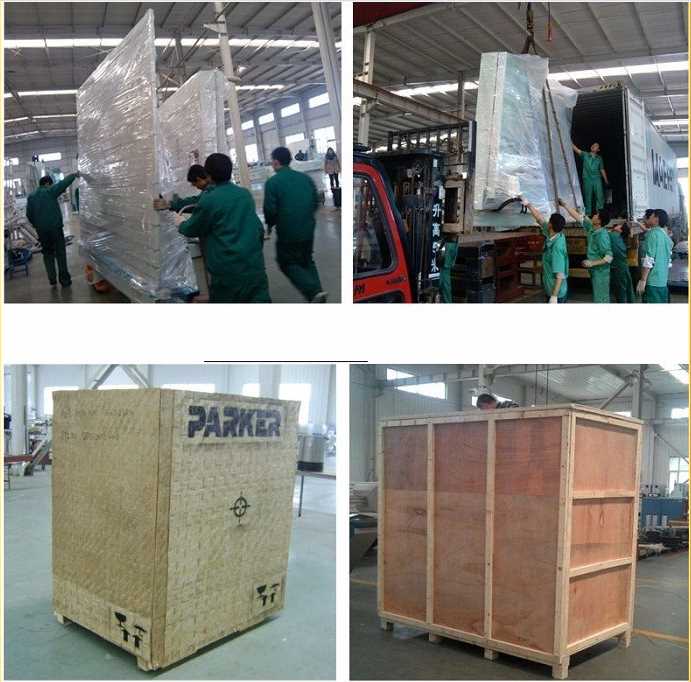

Packaging & Shipping
