Quick Details
Description
- Place of Origin: Zhejiang, China (Mainland)
- Brand Name: Datong
- Model Number: 92858
- Lift Mechanism: Scissor Lift
- Lift Drive / Actuation: Hydraulic
- Power: 2.2kw
- Rated Loading Capacity: 3000kg
- Min. Lifting Height: 110mm
- Max. Lifting Height: 1850mm
- Table Size: 1450-1950mm
- Overall Dimensions: 480*420*1050mm
- Weight: 1000kg, 1000kg
- Certification: CE
- Warranty: 1year
- After-sales Service Provided: Engineers available to service machinery overseas
- Lift capacity: 3000kg
- Lift height: 1850mm
- Min height: 110mm
- Lifting time: 55s
- Overall length of platform: 1450-1950mm
- Overall width of platform: 660mm
- Motor power: 2.2kw
- Packing size: 1560*710*760mm*2pcs 480*420*1050mm
Specifications

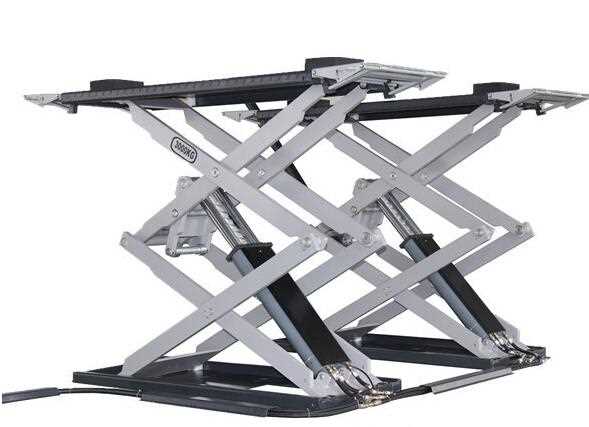

Ultrathin small scissors lift
1.Lift capacity:3000kg
2.Lift height:185mm
3.Power supply: 220V/380V
4.Weight: 1000kg
Ultrathin small scissors lift
|
Model
|
92585
|
|
Lift capacity
|
3000kg
|
|
Lift Height
|
1850mm
|
|
Min height
|
110mm
|
|
Lifting time
|
55s
|
|
Overall length of platform
|
1450-1950mm
|
|
Overall width of platform
|
660mm
|
|
Motor power
|
2.2kw
|
|
Power supply
|
220V/380V
|
|
Weight
|
1000kg
|
|
Packing size
|
1560*710*760mm*2pcs
480*420*1050mm
|
1.Ultrathin structure desgin can be installed directly on the ground
2.Four cylinders sruucture.Minimum height is 110mm
3.Antiskid platform.Aluminum shell motor prevents overheated
4.Operating control system with 24V safety voltage
5.With 24V limit lock design
6.Safety signal when lowering to 500mm sbove ground
7.Penumatic lock device
8.Platforms can extend for different length of vehicles
9.Pass 115% dynamic and 150% static loading test
10.CE approved
