Bridge and High Speed Way Gantry Crane For Sale

Feature: Gantry Crane Condition: New Application: highway, railway,outdoor Rated Loading Capacity: 100 t Rated Lifting Moment: Different Max. Lifting Load: 100 Ton Max. Lifting Height: 32m Span: 12-30m Place of Origin: Henan, China (Mainland) Brand Name: XINGANG Model Number: MH Model Certification: CE/ISO9001/SGS Warranty: 12 Months After-sales Service Provided: Engineers available to service machinery overseas Product name: XINGANG Type: HighWay Gantry Crane Main electrical parts: Siemens or other brand Lifting mechanism: Heady Duty Trolley Crane travelling limited switch: Included Emergency stop system: included Crane feature: Box , truss type Power Source: 3 Phase 380V 50hz Control Method: Remote or Cabin Control Crane type: gnatry crane for highway
Packaging & Delivery

Packaging Details: Packing of bridge and highway gantry crane,
Electricals and other parts are packaged by high quality plywood crates, Main beam packaged by plastic woven cloth.
Delivery Detail: 30 days
Bridge and High Speed Way Gantry Crane For Sale

Product Description
Bridge and High Speed Way Gantry Crane is suitable for handling, lifting and transport on highways, railway bridges and other construction sites. Its main girder is primarily designed with a triangular truss structure. Upper chord uses H-steel adding welding core board, lower chord uses U-steel adding welding core board. Web member using double U-steel buckled relatively. Main girder is divided into sections; Joints are connected by pin roll. Branch legs use tubular steel legs structure. Its tubular steel legs are connected using bars to form a stable triangular structure.

Safety Features

•Overload protection
•.Main lifting motor with thermal protection
•Hooks with latch
•Rubber buffers
•Protective earthing
•Crane switch and travel end switch
•Emergency switch can stop all movement when dangerous happened
•Sub-assemblies characteristic are tested before assembly
•All cranes must be preassembled and tested before leaving factory

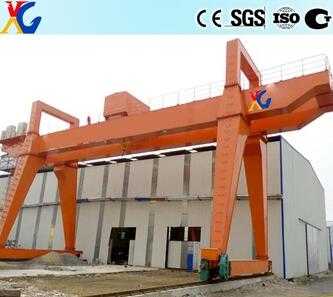

Box type highway gantry crane

Henan Xingang Crane Equipment Co., Ltd. is professional in crane development, design, manufacture, sales, installation and maintenance manufacturer, is the director unit of the China Heavy Machinery Industry Association, vice chairman of the China Crane Association. The company covers an area of more than 24 million square meters and a building area of 10 million square meters and has existing staff more than 1400 people, senior professional and technical, management personnel more than 120 people. The company has all kinds of advanced production equipments, test equipment nearly one thousand (sets), and can complete the lathing, milling, grinding, broaching, boring, rolling, drilling, piercing, belling, cutting, bending, plate rolling, plug welding, testing and heat treatment process independently. The main business focuses on XG brand products, such as single-girder cranes, double-girder cranes, gantry cranes, overhead cranes, Tower cranes, hydraulic hoists, container loading and unloading machines, ship cranes, portal cranes, container cranes, magnet cranes, Bridge girder erection machine and other large tonnage cranes within 500 tons. In the colleague industry, the company takes the lead through the GB/T19001-2000 idt ISO9001:2000 quality management system certification, GB/T 24001-2004 ISO14001:2004 environmental management system certification, GB/T 28001-2001 occupational health and safety management system certification the ISO9000, 3C and CE international quality system authentication, and has the perfect quality assurance system, standardization of the management system, advanced detection means and strong technical force, mainly supply the XG brand cranes to China Domestic Shipbuilding Company, with the good products quality and lower price, We start to export all over the world markets.
The company operating principles and service purposes are offer first-class products, provide satisfactory service and treat people with sincerity, business ethics. With perfect product quality, first-class services and good reputation, we sincerely hope to achieve win-win cooperation and create a brilliant future.
