Quick Details
Description
- Model NO.: GTWY
- Capacity: >10000kg
- Style: Single Face
- Entry Type: 2-Way
- Origin: China
- Certificate: ISO9000
- Material: Steel
- Type: Power Pallet Truck
- Trademark: NIULI
- HS Code: 842790000
Specifications

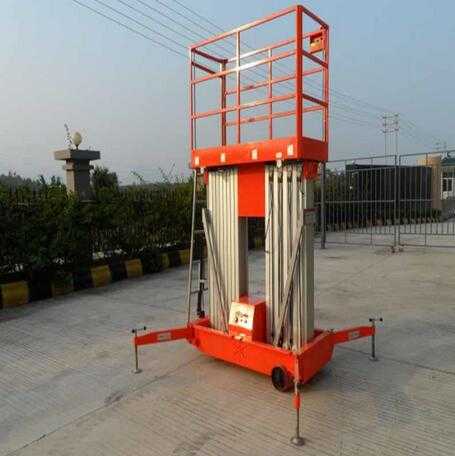

1.Aluminium Alloy Lifting Platform,
2.Single people aerial work.
3.Max height:14m,16m,18m
4.New style
Specifications:
1) Max height : 14m,16m,18m.
2) Rating Load :200KG/150kg/150kg.
3) Platform size : 145*95cm
4) Power : AC220V/50Hz, 2.2KW
5) Quality :1300KG,1400KG,1500KG
6) Shape dimension : 220*125*218cm/235*125*242cm
|
Model:
|
GTWY4-100
|
GTWY6-100
|
GTWY8-100
|
GTWY9-100
|
|
Maximum platform height(m):
|
4
|
6
|
8
|
9
|
|
Maximum working height(m):
|
5.7
|
7.7
|
9.7
|
10.7
|
|
Capacity(kg):
|
125
|
125
|
125
|
125
|
|
Platform size(m):
|
0.60*0.55
|
0.60*0.55
|
0.60*0.55
|
0.60*0.55
|
|
Power supply(v/Hz):
|
AC220/50Hz
|
AC220/50Hz
|
AC220/50Hz
|
AC220/50Hz
|
|
Motor power(kw):
|
1.1
|
1.1
|
1.1
|
1.1
|
|
Self weight(kg):
|
185
|
210
|
250
|
280
|
|
Overall dimension:
|
1.05*0.75*1.65
|
1.30*0.80*1.65
|
1.30*0.80*1.98
|
1.35*0.85*1.98
|
|
Model
|
GTWY10-300
|
GTWY12-300
|
GTWY14-300
|
|
Maximum platform height(m)
|
10
|
12
|
14
|
|
Maximum working height(m)
|
11.7
|
13.7
|
15.7
|
|
Capacity(kg)
|
300
|
300
|
250
|
|
Platform size(m)
|
1.40*0.93
|
1.50*0.93
|
1.50*0.93
|
|
Power supply(v/Hz)
|
AC220/50Hz
|
AC220/50Hz
|
AC220/50Hz
|
|
Motor power(kw)
|
2.2
|
2.2
|
2.2
|
|
Self weight(kg)
|
930
|
980
|
1000
|
|
Overall dimension(m)
|
1.65*1.10*2.05
|
1.75*1.10*2.05
|
1.75*1.10*2.42
|
NIULI MACHINERY MANUFACTURE Co., Ltd is a specialized hydraulic lifting-transportation machinery manufacturer in China. It has been developing through advanced technology of foreign countries and has profound experience and intense power. It can provide customers with high-effcient, secure and complete logistic load, unload and carrying equipment.
NIULI MACHINERY MANUFACTURE Co., Ltd main products are vehicle hydraulic trail board, hand pallet truck, hand stacker, electric stacker, walked hydraulic stacker, hydraulic lift table and other hydraulic carrying-lifting equipment. We can develop new products according to customers demands.
NIULI MACHINERY MANUFACTURE Co., Ltd is only one corporation including vehicle hydraulic trail board explation, batch produce & sales in China. The production have been passed the produce license by Nation Qulity Vertification Omni-Bureau. The 70% vehicle hydraulic trail board have been exported to HONGKONG and MACAO Taiwan and other region. "NIULI"brand vehicle hydraulic trail board has become the first choice for so many famous enterprises and government in Nations and abroad.
NIULI MACHINERY MANUFACTURE Co., Ltd is one of the biggest factory that produces hand pallet truck in China with a annual production of 50000PCS. The hand pallet truck has been passed the GS/CE certification by TUV in Germany.
NIULI MACHINERY MANUFACTURE Co., Ltd ' S products have been exported to more than 50 countries and region. The sales and post-sale service network cover the whole China with more than 300 regions, which enjoy great reputation.
