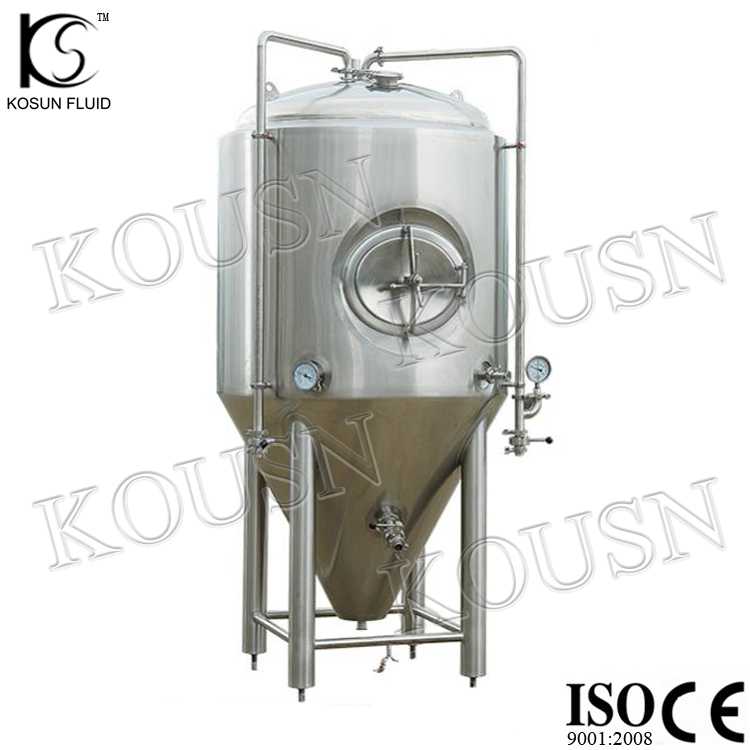

Main technical parameters
|
CF-2BBL
|
CF-7BBL
|
CF-10BBL
|
CF-15BBL
|
CF-20BBL
|
CF-25BBL
|
CF-30BBL
|
CF-40BBL
|
CF-50BBL
|
CF-60BBL
|
CF-90BBL
|
CF-120BBL
|
|
Working volume(BBL)
|
2
|
7
|
10
|
15
|
20
|
25
|
30
|
40
|
50
|
60
|
90
|
120
|
|
Material
|
All stainless steel SUS304
|
|
The diameter of inner cylinder(mm)
|
650
|
1000
|
1100
|
1200
|
1450
|
1500
|
1600
|
1750
|
1750
|
1900
|
2150
|
2150
|
|
Cylinder height (mm)
|
600
|
1000
|
1000
|
1220
|
1220
|
1500
|
1500
|
1500
|
2000
|
2000
|
2440
|
3500
|
|
The diameter of outter cylinder(mm)
|
The diameter of inner cylinder+The thickness of insulation*2
|
|
Reference height (mm)
|
1850
|
2500
|
2700
|
3050
|
3250
|
3600
|
3700
|
3900
|
4400
|
4500
|
4800
|
5800
|
|
Conical degree
|
60º-90º
|
|
Surface roughness of inner shell
|
Ra≤0.22μm
|
|
Surface roughness of outter head
|
Mirror polished or matt polish or wire-drawing processing
|
|
Head Type
|
DHA or DHB or according to your reqiurement
|
|
Jacket type
|
Efficient use of Maitreya plate jacket heat technology, heating rate is greatly improved, 1.5mm thick, welding aperture 12mm, adjacent hole center distance 80mm, clamping sleeve height 15mm
|
|
Cooling area(m²)
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
9
|
11
|
13
|
16
|
19
|
|
The material of insulation
|
Anti - aging polyurethane Pearl(PU)
|
|
The thickness of insulation(mm)
|
50/80/100
|
|
Outside skin
|
2B Plate,or mirror polish,matt polish,wiredrawing processing,thickness=2mm
|
|
Manway
|
Top manway
|
DN300,DN350,DN400,DN500,DN600 could be chose
|
|
Side-manway
|
ellipse manway:580X480,530X430,500X400 could be chose
|
|
Adjustable feet
|
3 or 4
|
|
Adjustable outlet
|
Tri-clamp Φ51/Φ63/Φ76/Φ89(rotating part),360°adjustable,Flexible rotation
|
|
CIP cleaning piping
|
Tri-clamp Φ32/Φ38/Φ51,
Using arc direct transition, no weld, more health, but also reduce the resistance of pipeline, improve cleaning efficiency
|
|
Lifting ears
|
According with HG/T 21574-2008
|
|
Level equipement
|
Sanitary hose connected pipe cleaning and clear liquid outlet
|
|
Spray ball
|
Tri-clamp Φ63/Φ76/Φ89,
The quick clamp connection, disassembly, 360 degrees omnibearing cleaning, installed in the top of the device
|
|
Inlet/outlet
|
Tri-clamp Φ25/Φ32/Φ38/Φ51/Φ63,
Also can choose the bottom two deep pot of different height of outlet, clamp connections
|
|
Safty valve
|
Tri-clamp Φ51
|
|
In let yeast
|
Tri-clamp Φ76/Φ89/Φ102/Φ133/Φ159
|
|
Thermometer
|
M12X1.5(digital display)/M27X2 or Tri-clamp Φ32
|
|
Pressure gauge
|
M20X1.5/ Tri-clamp Φ32
|
|
Sample Valve
|
Tri-clamp Φ25
|
|
Carbonation stone
|
Tri-clamp Φ51/Φ63/Φ76/Φ89
|
|
Vent hole
|
Tri-clamp Φ25/Φ32/Φ38/Φ51
|
|
Jacket inlet/outlet
|
Female screw/Male screw
|
|
Brand
|
Laser engraving, detailed
|
|
Accorssies
|
Themometer,thermo-well,sampling valve,pressure gauge,pressure/vaccum relief valve,
3 butterfly valves,C02 port,PVRV,beer level indicator.
|
|
Notes
|
It can be made according to customers'special requirements.
|
