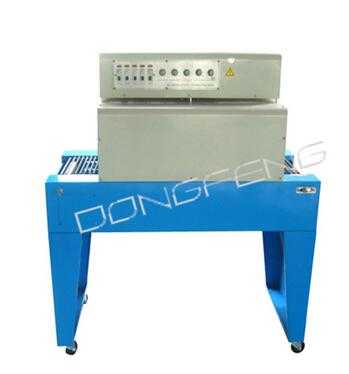

BS-300LD Electric Semi-Automatic Sealing Shrink Packing Machine
Shrinking machine BS series adopt infrared ray to heat, electric stepless shift, stable and reliable, Inimitable designed auto-heat control system hot-shrink chamber can heat equally and stable. In the shrink process, without influence of goods. Suitable for the shrink package of food, drink, cosmetics, toy, stationery, book, hardware, commodity ETC.
Quick Details
Description
- Model NO.: BS-300LD
- Packaging: Cartons
- Driven Type: Electric
- Adjust Speed: Electronic Speed Control
- Heating Mode: Quartz Heating Tube
- Loading(Kg): 30
- Voltage(V): 220/380
- Trademark: DF
- Origin: China
- Application: Food, Commodity, Machinery & Hardware, Textile, Alcohol and Tobacco, Toy, Chemical, Gifts & Arts, Dining, Medical
- Automatic Grade: Semi-Automatic
- Manner of Packing: Four Side Seal Type
- Type: PVC,POF
- Packaging Material: Film
- Pacage: Wooden Case
- Export Markets: Global
- Specification: CE
- HS Code: 84388000
Description:
Shrinking machine BS series adopt infrared ray to heat, electric stepless shift, stable and reliable, Inimitable designed auto-heat control system hot-shrink chamber can heat equally and stable. In the shrink process, without influence of goods. Suitable for the shrink package of food, drink, cosmetics, toy, stationery, book, hardware, commodity ETC.
Features:
1.Compact construction, high efficiency;
2.The use of intra-red Quartz heater tube reduces the power consumption;
3.Strong air-flow ensures excellent heat distribution for an even shrinking;
4.The temperature controlling system makes the operation easily;
5.The speed of the conveyer is adjustable.
Specification:
|
Model Name
|
BS-200
|
BS-300LD
|
BS-400LD
|
|
Voltage
|
220V/50HZ
|
|
Power(KW)
|
2.4
|
3.6
|
6
|
|
Shrink Time (m/min)
|
0-6
|
0-12
|
0-10
|
|
Shrink Tunnel Size (mm)
|
200x120x130
|
300x150x150
|
400x200x200
|
|
Dimension(mm)
|
820x510x650
|
1420x760x1030
|
1420X760X1030
|
|
Weight (kgs)
|
30
|
75
|
85
|
ZheJiang DongFeng Packing Machine Co., Ltd is a member of China National Packing & Association and also a important enterprise of the broungh, It's specialized in packing machine, with it's research, manufacture and self-ssupport export, Factory occpuing an area of 10000 square maters, 30 engineers and techincians. Annually production capacity 80000 sets, 90% of which for export. The PFS series hand sealer got CE UL sertification, and it is ISO9002 quality control system certified.
Main Production:
PFS series Impulse Sealer; DBF series Auto sealer; DZQ series Vacuum Sealer; SP Skin Packer; VS Vacuum Skin Packer; BS Series Shrink packer; ZBS Series Auto Shrink packer; FGK series Laminating Machine; TD Series Binding Tools; HW series Hand Wrapper; HP series Printer; KZB Series Strappiing Machine; LB Series Liquid Packing Machine. CD Series Plastic Capper.
