Specifications
BOPP film pelletizing line
1, SS cutting compactor
2, 38CrMoAlA screw and barrel
3, water-ring cutter
4,ABB inverter

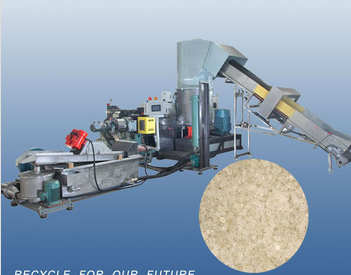

Production Name: BOPP film pelletizing line
Building relationships, Building trust
Description & Consist of:
the BOPP film pelletizing line is used to granulate the recycled clean PE/PP/BOPP films, bags& flakes. meanwhile.
Generally, a whole BOPP film pelletizing line consists of belt conveyor, cut compactor(agglomerator) or forced feeder, single-screw extruder, hydraulic sceen changer, water-ring pellet cutter, dewatering machine, vibration sieve, cyclone system and control system.
|
NO
|
machine name
|
qty
|
rate power
|
|
1
|
belt conveyor
|
1
|
1.5kw
|
|
2
|
cut compactor
|
1
|
37kw
|
|
3
|
SJ120 single screw extruder
|
1
|
90kw
|
|
4
|
hydraulic screen changer
|
1
|
10kw
|
|
5
|
water cooling tank with drier
|
1
|
1.5kw
|
|
6
|
pellet cutter
|
1
|
2.2kw
|
|
7
|
vibration sieve
|
1
|
0.4kw
|
|
8
|
cyclone system
|
1
|
3kw
|
|
9
|
control system
|
1
|
0
|
