Quick Details
Description

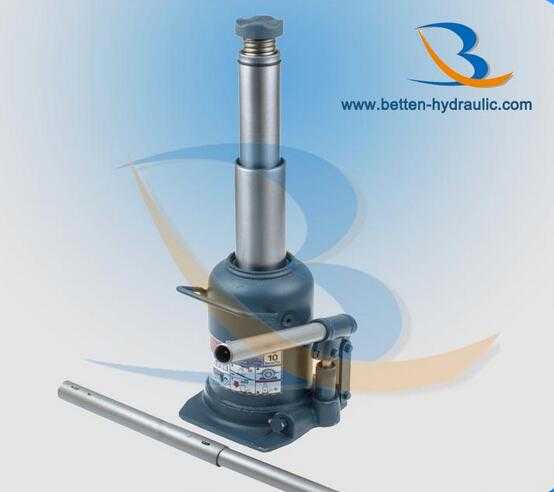

- Model NO.: BMTHJ-013
- Structure: Hydraulic Jack
- Power Source: Hydraulic
- Condition: New
- Color: Customerized
- Net W(Kg): 2-30kg/PC
- Adjust H(mm): 0-50mm
- Specification: standard
- HS Code: 8425421000
- Type: Bottle Jack
- Capacity (Load): 1-10T
- Certification: CE, ISO 9001:2008
- Min Heigh: 80mm
- Warranty: 1 Year
- Lift H(mm): 100-500mm
- Transport Package: Wooden Box
- Origin: Jiangsu, China
A bottle jack is a hydraulic jack which resembles a bottle in shape, having a cylindrical body and a neck, from which the hydraulic ram emerges. A quality bottle jack is an essential tool for every car, garage and workshop, From Compact 2T bottle jack to heavy duty 100T industrial bottle jacks, jacks has the bottle you need to get the job done. Actually bottle jacks are versatile because their horizontal position makes it possible to place them in tight spots and provides good leverage.
Specification
1.Capacity: 2 Ton to 100 Ton
2.Stroke: 150mm to 180mm
3exportimescheck**exportimes Weight: 6KG, .... , 71KG
|
Specification
|
BMTJ-2050
|
BMTJ-20100
|
BMTJ-3050
|
BMTJ-30100
|
BMTJ-6050
|
BMTJ-60100
|
BMTJ-10075
|
|
Capacity(ton)
|
20
|
20
|
30
|
30
|
60
|
60
|
100
|
|
Stoke(mm)
|
50
|
100
|
50
|
100
|
50
|
100
|
75
|
|
Effective area (cm2)
|
22.9
|
22.9
|
36.29
|
36.29
|
67.89
|
67.89
|
94.98
|
|
Oil Capacity(L)
|
0.16
|
0.32
|
0.25
|
0.5
|
0.45
|
0.9
|
1.2
|
|
Height of products(mm)
|
153
|
217
|
153
|
217
|
164
|
231
|
254
|
|
Extended height(mm)
|
214
|
328
|
214
|
328
|
225
|
342
|
340
|
|
Outside(mm)
|
98
|
98
|
115
|
115
|
155
|
155
|
180
|
|
Bore dia(mm)
|
73
|
73
|
88
|
88
|
125
|
125
|
140
|
|
Thead for input oil-port(ZG)
|
27
|
27
|
34
|
34
|
54
|
54
|
79
|
|
Saddle protrusion form plgr(mm)
|
3/8
|
3/8
|
3/8
|
3/8
|
3/8
|
3/8
|
3/8"
|
|
Weight(kg)
|
7.2
|
10
|
10
|
13.4
|
17.2
|
23.2
|
41
|
Wuxi Boli Hydraulic is known as a 20 years‘ Professional manufacturer of hydraulic cylinders, hydraulic jack, cardan shaft and spare parts in Wuxi, China around 170km from Shanghai Port. Our factory cover an area of over 5000 square meters and have around 100 stuff including a technical team with more than 20 engineers. Our workshop equipped with over 30 sets of manufacturing and testing machines including machining center, numerical control machine, argon welding machine, plasma cutter etc. Boli has gained the certification of ISO ISO9001: 2008 and Product quality supervision and inspection center of Wuxi City. Meanwhile, Boli also got customers' satisfaction for reasonable price, timely delivery and good after-sale service.
With the fast development in the past 10 years, we have gained much experience and technology in making various types of hydraulic system and cylinders with our expert team. Our products are widely used in equipment such as machine tool, metallurgical equipment, forging machine, kiln equipment, brick machine, plastic machine, car manufacturing machine, construction equipment for road and bridge, wielding machine, port facilities, test machine, fully auto line and we have gained a lot of world famous customer like XCMG, LIUGONG Machinery, Chalco, BOSCH, Haier, SAINT-GOBAIN, Shanghai Boiler, HTC etc.
