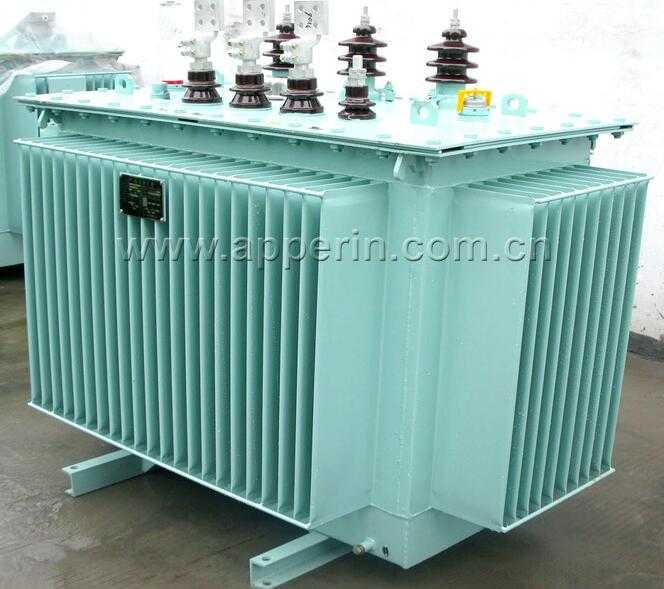

• APPERIN 11KV 500kva Three-phase Oil-immersed Power Transformer

APPERIN 11KV 500kva Three-phase Oil-immersed Power Transformer

The performance of our S9 S10 S11 series 20kV and 35kV three-phase oil-immersed transformer conform to the standard of GB 1094-1996 “Power Transformer “ and GB/T6451-2008 “Technical Parameter and requirements of Three-phase Oil-immersed Power Transformer”. Usage: Power Phase: Three Coil Structure: Toroidal

Product Details

Quick Details

Description

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: APPERIN
  • Model Number: S11-M-10kV
  • Usage: Power
  • Phase: Three
  • Coil Structure: Toroidal
  • Coil Number: Autotransformer
  • Tap changer: NLTC
  • Cooling method: ONAN
  • Rated power range: 30-2500kVA
  • High voltage range: 6-11kV
  • Connection Symbol: Dyn11 Yyn0
  • Windings material: Copper
  • Power transformer: 500kva transformer with price
  • Standards: IEC,GB,ANSI
  • Iron core: Silicon sheet
  • Losses: Low losses

distribution transformer  oil immersed distribution transformer  electric transformer

1

The performance of our S9 S10 S11 series 20kV and 35kV three-phase oil-immersed transformer conform to the standard of GB 1094-1996 “Power Transformer “ and GB/T6451-2008 “Technical Parameter and requirements of Three-phase Oil-immersed Power Transformer”.

2

The iron core is made of quality cold –rolled silicon steel sheet , and the coil is made of quality oxygen-free copper, featuring good outlook and safe running.

3

The products are widely used in power transmission and distribution of industrial and agricultural power networks.

4

Iron core is made of cold-rolled silicon-steel sheet with high conduction of magnetism and adopts pulling-plank structure,  so that its magnetic route is short, losses and noise level is low;

5

Compress wire is adopted for winding so losses are low and have good ability withstand short-circuit;

6

Its active part adopts special pressing method which could ensure reliable axial pressure;

7

The oil tank is bell type with the structure of full folding plate type, having an excellent exterior and easy for maintenance;

8

Reliability: All in-service product have no damages or oil leakage occurred;

9

Oil tank with various kinds of structure and good appearance.

Rated power
(kVA)


High Voltage
(kV)


H.V Tap range


Low Voltage
(kV)


Connection Symbol


Short-Circuit Impedance
(%)


No-load Loss
(W)


On-Load Loss
(W)


No-load Current
(%)

9 Type

10 Type

11 Type

9 Type

10 Type

11 Type

30

6
6.3
10
10.5

±5%
±2×2.5%

0.4

Dyn11
Yyn0

4

130

110

100

600

600

600

2.1

50

170

150

130

870

870

870

2

63

200

180

150

1040

1040

1040

1.9

80

250

200

180

1250

1250

1250

1.8

100

290

230

200

1500

1500

1500

1.6

125

340

270

240

1800

1800

1800

1.5

160

400

310

280

2200

2200

2200

1.4

200

480

380

340

2600

2600

2600

1.2

250

560

460

400

3050

3050

3050

1.2

315

670

540

480

3650

3650

3650

1.1

400

800

650

570

4300

4300

4300

1

500

960

780

680

5150

5150

5150

1

630

4.5

1200

920

810

6200

6200

6200

0.9

800

1400

1120

980

7500

7500

7500

0.8

1000

1700

1320

1150

10300

10300

10300

0.7

1250

1950

1560

1360

12000

12000

12000

0.6

1600

2400

1880

1640

14500

14500

14500

0.6

2000

5

2830

2270

1940

17140

17140

17140

0.6

2500

3350

2690

2300

20260

20260

20260

0.5

APPERIN 11KV 500kva Three-phase Oil-immersed Power Transformer
