Description

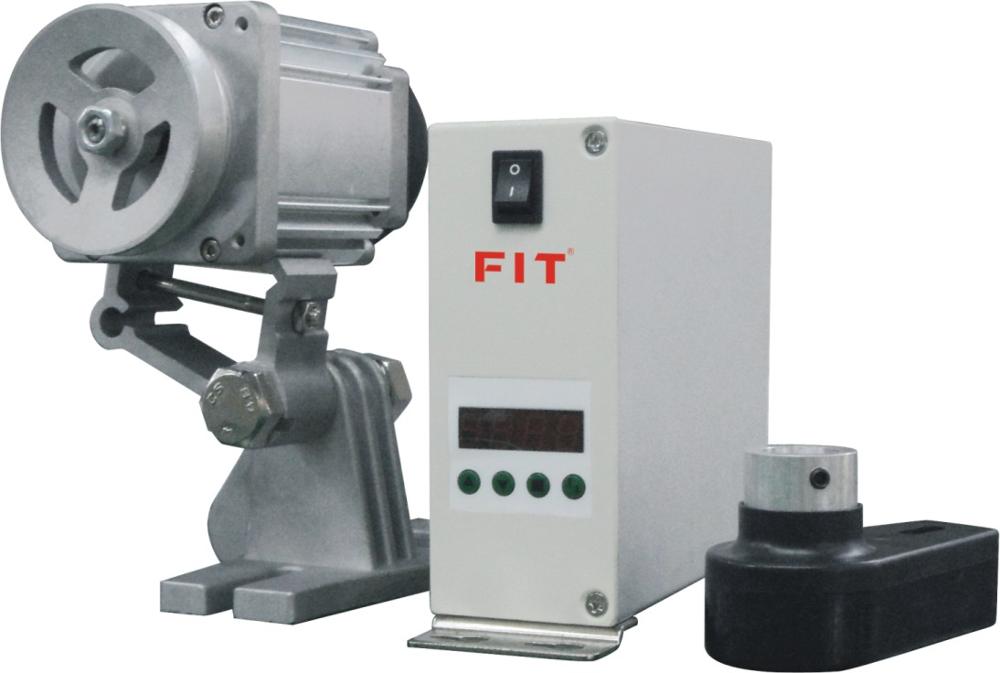

AC 220V Energy Saving Sewing Machine Motor
The sewing AC permanent magnetic synchronous servo controller is used for driven control of industrial sewing equipment,with merits of small inertia,featured by high,medium speed. Pecisely control on torque can adapt it to thin,moderate thick sewing machine,the protection on overcurrent of soft and hardware,and that on the shortage of voltage makes the controller more reliable,it can realize non-polar control of sewing speed, thus the sewing machine can fulfill all kinds of auto-sewing tasks.It can save time,energy, high-efficiency and energy saving control effect.
Environmental Condition
A. The elevation should be no more than 4000meter
B.Ambient temperature:-15~45℃
C.The relative humidity can be 95±3%,while the temperature is 20±5℃
|
Model
|
Belt-driven AC Sevro Motor
|
|
Voltage
|
AC 220±20%V 50/60HZ
|
|
Power
|
550W
|
|
Rotary speed
|
5000RPM
|
|
Sewing speed
|
0~2200RPM
|
|
Rating Torque
|
3Nm
|
|
Quick stop
|
yes
|
|
Stop up/down
|
yes
|
|
Soft start
|
yes
|
|
Presser foot lifer
|
yes
|
|
Trimming,strumming,backstitch
|
yes
|
|
Overload protection
|
yes
|
|
Operation panel
|
(Optional)
|
