Quick Details
Description
Functions :

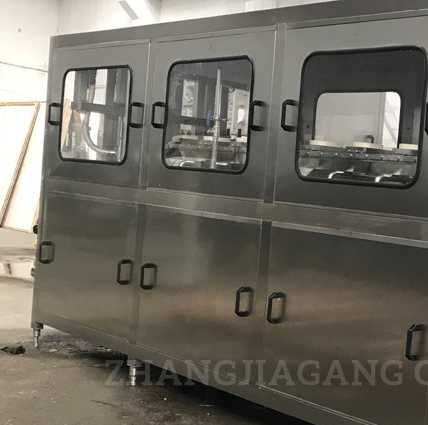

QGF-1200R rotate 5 gallon water filling machinery is used for 5gallon bottle water
production , such as mineral water ,pure water , drinking water ,cleaned natural water for
drinking and so on , this water production line high automatically and very popular in the water plant from all over the world .
Main equipment items of the barrel water filling production line :
The whole line is composed by the following
Automatic two heads de-capping machine
Automatic rotate barrel outside brushing machine
Automatic barrel loading system
Automatic barrel washing machine
Automatic rotate filling and capping machine 2-in-1
Automatic cap washing and loading system
Sleeve label machine with shrinking tunnel
Automatic barrel palletizer machine
Conveyor system
Take note:the detail machines according to the user's requirements .
Filling technical description:
filling technicas and structure is designed and innovated by ourselves. It adopts
large fluent filling and fix quantify filling . filling valve is SUS fine casting process,
it has air proof ring to avoid attrition of the metal .it is control by cylinder , and it is
stabilization . in the filling process, barrel after washing transport to covey barrel screw.
The covey barrel screw apart the barrel equality to star-wheel. The star-wheel lead the
barrel to filling system. When the filling cylinder meet journey switch, cylinder moves
down to open filling valve. Filling valve start to fill. After filling , cylinder meet with journey
switch again and move up. Filling valve close. The barrel after filling export by star-wheel.
And transport to capping machine by chains. Filling parts has 12 filling valves to satisfy the speed of the machine at the same time , liquid position is nicety because of controlling by journey switch.
Main configuration for the whole water production line :
The whole line is controlled by SS electrical carbinate with touch screen ,PLC and transducer
brand is Japan Mitsubishi .water pump adopts the most famous brand in China named
NANFANG ,Motor reducer adopts the joint venture brand .penumatic system adopts AIRTAC.
Glory machinery Co., Ltd. Locates in Zhangjiagang, lies to the ample south of the Yangtze River Delta, east to Shanghai, north to Nanjing, south to Jiangsu, province, China Supported by strong designing & developing facilities and professional technical team, we are of fully capability in research and development, manufacture and after-sale service. We never stop introducing the most advanced liquid packing technology, developing and total production line, focusing on the reliability of overall performance, these ensure us unique competitive advantages.
Our main products: Mineral /pure drinking water treatment, series of water/juice/carbonated drink filling production line. Kinds of labeling and packing machinery. And plastic washing recycling line. Blowing molding, preform and cap injection machinery, we offer the whole line.
Advantages:
Glory with 20 years experience in the beverage machinery industrial. And 8 years exporting. Mainly export to Asia, Africa, South America countries. With good reputation for the products and sales service.
We offer the client good quality machines, best heart service.
