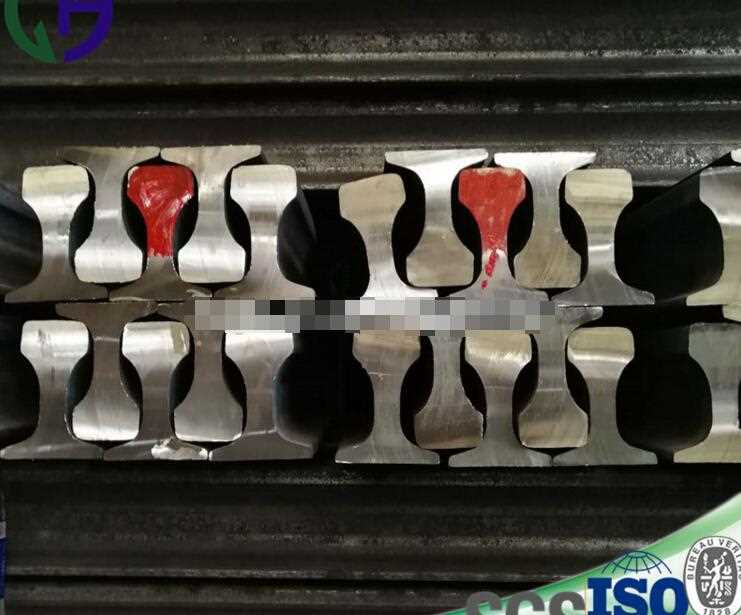

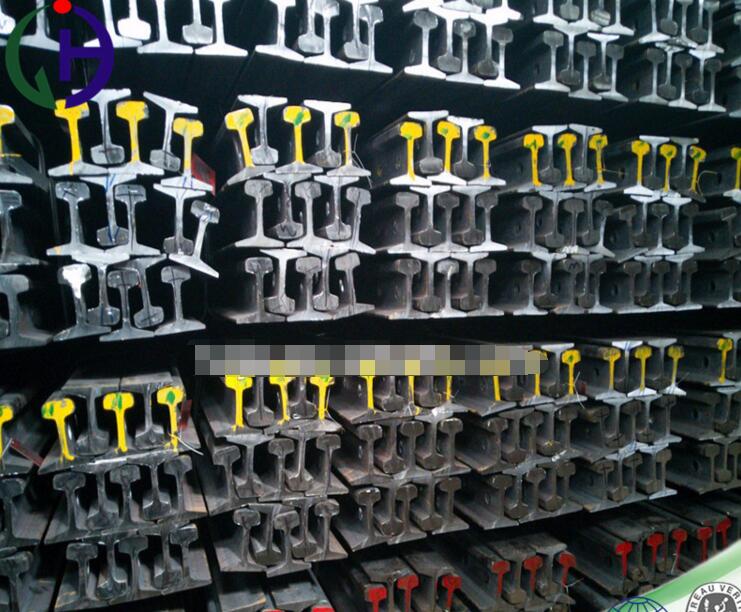

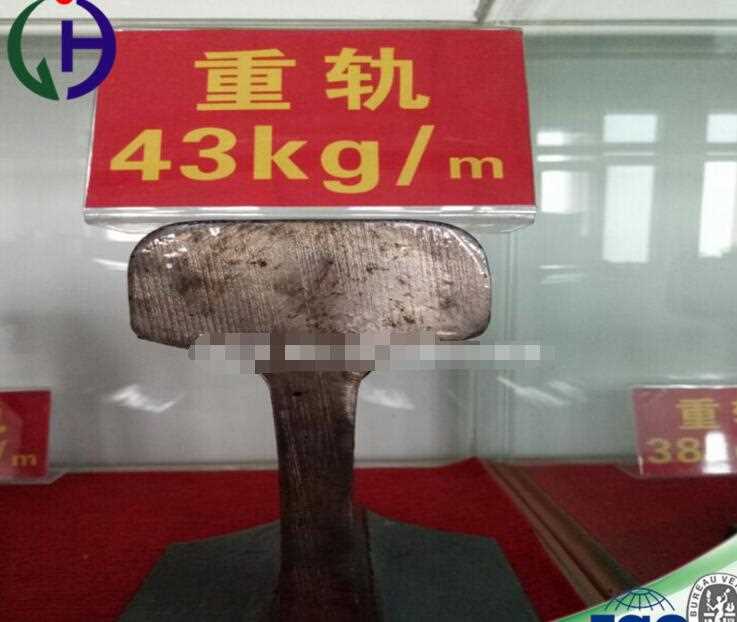

43kg Manufacture Heavy Steel Rail

Steel rail packed in bundles with iron wire or as clients' requirements;The rails must provide a continuous, smooth and resistant rolling surface for the wheels.

Product Details

Quick Details

Description

Standard:GB
Grade:U71/U71Mn
Rail Heigth:140MM
Bottom Width:114MM, 114 mm
Web Thickness:14.5MM, 14.5 mm
Head Width:70.00MM, 70mm
Length:12m,12.5m, 12m,12.5m
Place of Origin:Hebei, China (Mainland)
Brand Name:Helei
Model Number:38kg/m,43kg/m,50kg/m,60kg/m
Type:Heavy Rail
Application:Railway Rail
Weight:44.653KG/M
Secondary Or Not:Non-secondary
Product name:P43 steel rail
Certificate:ISO SGS BV
Material:U71Mn.45Mn
Size:43KG/M
Heigth:140.00 mm
Theoretical Weight:44.653 kg/m
Packaging & Delivery
Packaging Details:Steel rail packed in bundles with iron wire or as clients' requirements.
Delivery Time:7-10days,20-30days upon the recept of T/T or workable L/C



Name of Commodity Specificaton Materials Standard of Products Theory Weight Length of Dimension     (m) Packed in bundle with iron wire (pcs/bundle)
Light Rail 4kg/m Q235 Q/YYG001-2008 4kg/m 6,8,9,10 75
8kg/m Q235 Q/YYG001-2008 8.42kg/m 55
12kg/m Q235 GB11264-89 12.2kg/m 36
15kg/m Q235/55Q/50Q GB11264-89 15.2kg/m 28
18kg/m Q235/55Q/50Q YB222-63 18.02kg/m 21
22kg/m Q235/55Q/50Q GB11264-89 22.3kg/m 21
24kg/m Q235/55Q/50Q Q/YYG001-2008 24.46kg/m 21
30kg/m Q235/55Q/50Q GB11264-89 30.1kg/m 15
Heavy Rail 38kg/m U71Mn/U71/45Mn GB2585-2007 Q/YYG002-2008 38.733 12,12.5 10
43kg/m U71Mn/U71/45Mn GB2585-2007 Q/YYG002-2008 44.653 10
50kg/m U71Mn/U71/45Mn GB2585-2007 Q/YYG002-2008 51.514 10
Crane Rail QU70 U71Mn YB/T5055-93 52.8kg/m 12,12.5 10
QU80 YB/T5055-93 63.69kg/m 10
QU100 YB/T5055-93 88.96kg/m 5
QU120 YB/T5055-93 118.1kg/m 5
I-beam of Mine Usage Steel 9# 20MnK/ Q235 YB/T5047-2000 17.69kg/m 8,9,10 28
11# YB/T5047-2000 26.05kg/m 18
12# YB/T5047-2000 31.18kg/m 15
U-beam Of The Mine Channel Steel 25U 20MnK/ Q235  GB4697-1991 Q/YYG006-2008 24.95kg/m 8,9,10,12 15
29U GB4697-1991 29kg/m 15
36U Q/YYG006-2008 35.87kg/m 15

Name of Commodity Specificaton Materials Standard of Products Theory Weight (kgs/set) Length of Dimension  (cm) Packed in bundle with iron wire    (set)
Fish Plate 8kg Q235B GB11265-89 0.8 +0.8 =1.6   50
1+1=2
12kg GB11265-89 1.1+1.1=2.2 45.5 50
2.6-3.0
15-18kg GB11265-89 3.6-4.0 53.54 25
4.6-5.0
5.6-6.0
22-24kg GB11265-89 6.6-7.0 61.73 20
7.6-8.0
8.4-9.0
30kg GB11265-89 14.4-15.0 71.48 10
16.4-17.0
43kg GB185-63 57.0-58.0 79

43kg  Manufacture Heavy Steel Rail



43kg  Manufacture Heavy Steel Rail



43kg  Manufacture Heavy Steel Rail

Company Profile

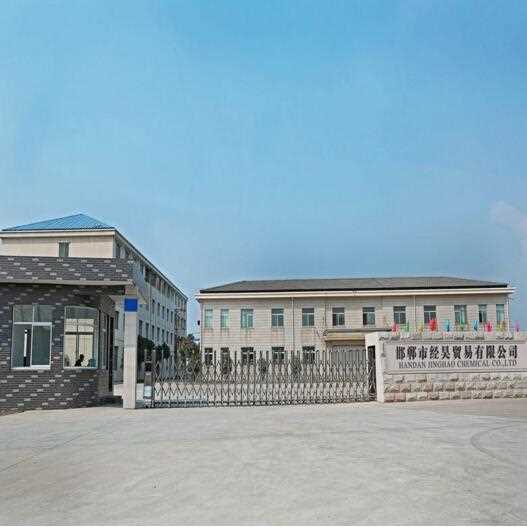

Handan JingHao Chemical Co., Ltd. is a coal chemical processing and production enterprises, the annual processing of 600 thousand tons of coal tar, the coal chemical production and processing base. In May 2008 become the world coal chemical industry association member.
In 2004, a coal tar processing capacity of 150 thousand tons; in 2008, the coal tar processing capacity of 450 thousand tons of coal, a modified coal tar pitch production line of 165 thousand tons, a production of a variety of products, such as the production line of 180 thousand tons of medium temperature coaltar pitch. The main products are medium temperature coal tar pitch, modified coal tar pitch, coal tar oil, creosote oil,anthracene oil, crude naphthalene, refined naphthalene, decrystallized anthracene oil products etc..
Factory engaged in coal chemical products for more than 10 years with strong technical force, excellent equipment, exquisite workmanship. Adhering to the "integrity, innovation, hard work" business philosophy, products are popular in the whole china and exported to North America, Europe, Japan, Southeast Asia and other parts of the world.
Our branch company Handan Helei Building Co.,Ltd produce large quantity of Steel rail (light rail,heavy rail) and steel round bar. Welcome new and old customs from the world call us.
