Quick Details
Description

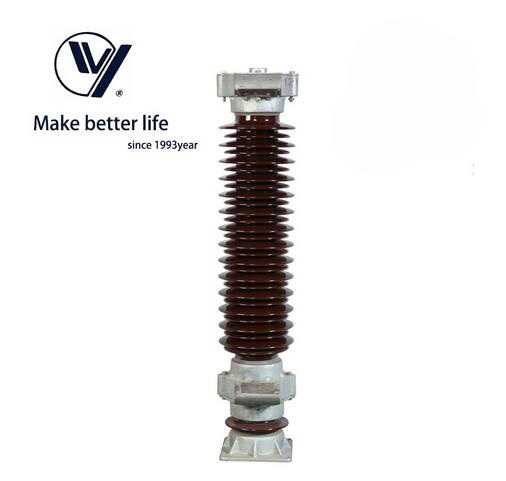

- Model NO.: Y10W5-132
- Structure: Zinc Oxide Arrester
- Application: Substation
- Operation Voltage: High Voltage
- Material: ZnO
- Brand: Yongde
- Creepage Distance: 3906mm
- Line Discharge Class: 3
- Transport Package: by Wood Carton
- Origin: China
- Type: Power Source Arrester
- Installation: Parallel Arrester
- Size: Large
- Shape: Cuboid
- Certification: ISO9001
- Phase: Single
- Housing: Porcelian
- Trademark: YongDe
- Specification: IEC 60099-4
- HS Code: 85354000
Features:
Better Electrical performance & reliability
Ease of Installation-Light weight & smaller size
Better Operating conditions
Explosion & shatter proof & less mechanical
damage to nearby equipments
Better performance in polluted environment
Vandalism resistant
Free from Moisture ingress
Higher safety
Higher mechanical strength
Insensitive to UV radiation
High resistance to Ozone & Corona
Excellent Tracking resistance
Technical Parameters:
Rated voltage: 132kv
Height: 1970mm
Creepage distance: 4250mm
Maximum system voltage Um: 145/161KV
Line dischrage level: 2/3/4
Long duration current impulse: 600/800/1000A
4/10 μ s current impulse: 100KA
Lightning impulse withstand: 650KV
Power frequency voltage withstand: 275KV
|
Type
|
Y10W5-132/344
|
|
Rated voltage---------kV
|
132
|
|
MCOV ----------------kV
|
106
|
|
Nominal Current-------kV
|
10
|
|
Residual voltage of steep impulse----at 5kA(kV)
|
396
|
|
8/20µS Residual voltage of lightning impulse current kV(Peak value)-----at 5kA(kV)
|
334
|
|
Residual voltage of switching impulse current kV (peak value)----at 1kA (kV)
|
263
|
|
1mA D.C reference voltage (kV)
|
192
|
|
Line discharge level
|
3
|
|
2mS long duration impulse current A
|
850
|
|
4/10µS High current impulse kA
|
100
|
|
Lightning impulse withstand kV
|
650
|
|
Power frequency voltage withstand(dry/wet)kV
|
275
|
|
0.1S TOV--------------kV
|
158.4
|
|
1S TOV----------------kV
|
151.8
|
|
10S TOV---------------kV
|
145.2
|
|
1200S TOV-------------kV
|
132
|
|
Creepage distance ----mm
|
4250
|
|
Material employed in series non-linear resistor
|
Zinc Oxide
|
Hangzhou Yongde Electric Appliances Ltd Company was founded in 1993. As a high-new-tech enterprise in Zhejiang province, it is about 15 kilometers from downtown area.
Our Company is one of the recommended model companies for national power grid construction and transformation. We specialized in manufacturing of 0.22-500kV metal oxide arrester of all types and applications and 10-220kV outdoor high-voltage disconnecting switch.
Currently, our company employs 150 Staffs, with 23 technically-titled and 15 senior technical title holders, who organize a high standard scientific research and development team. Every year we invest many research funds for new product development and acquiring advanced production and testing equipment each month.
Through developing new generations of high-tech products, the technology and production level maintains a leading position in the national level.
The newly developed GW37, GW38 series outdoor high-voltage disconnecting switch have been proved by authorities, which has achieved ideal operating results and won high praise from users.
Our company has a variety of CNC equipments of over a hundred units. In 2001, our company passed the ISO9001 quality inspection, and in August 2010 adopted itself to the ISO9001-2008 version of reinspection.
The annual production capacity of the company is about 6, 000, with well equipped means of inspection for raw materials and purchased spare parts. Each procedure in the manufacturing process is under strict control and supervision. The inspection equipments and instruments are advanced and reliable which effectively guaranteed our product quality.
Yongde holds the quality policy of being 'the technical forerunner, supreme in quality, supremacy of customers, and innovative progressing', so that our products and services successfully satisfied our users. We warmly welcome friends and customers from home and abroad to contact for exchanges and corporations. We also welcome feedbacks from our user communities.
