Quick Details
Description
- Type: Filling Machine
- Condition: New
- Application: Beverage, Chemical, Commodity, Food, Medical, Comestic, etc
- Packaging Type: Bags, Bottles, Cans
- Packaging Material: Glass, Metal, Plastic
- Automatic Grade: Automatic
- Driven Type: Pneumatic
- Voltage: 220V/ 50HZ
- Power: 800W
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: MingNa
- Model Number: MNY-16
- Dimension(L*W*H): 2000X800X1750mm
- Weight: 750kg
- Certification: CE ISO
- After-sales Service Provided: Engineers available to service machinery overseas

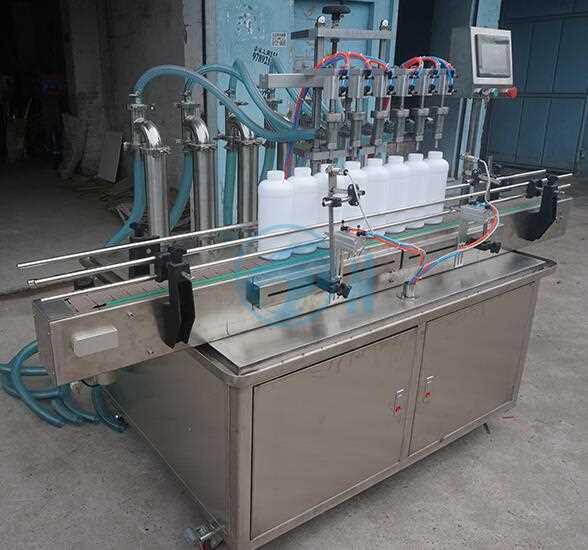

- Product Name: Automatic Linear Liquid Filling Machine
- Filling Speed: 30-60 Bottles/Min
- Filling Head: 2 heads, 4 heads, 8 heads, 16 heads( optional)
- Filling Volume: 25-2500 ml
- Precision: ±1%
- Air Pressure: 0.4-0.7mpa
- Air Consumption: 0.5 m3 / Min
- Software: PLC
- Customization: Yes
- Warranty: 12 months warranty, lifetime repair guarantee
|
Model
|
MNY-16
|
|
Voltage
|
220/380V 50-60HZ
|
|
Power
|
800W
|
|
Filling Volume
|
5-2500ml
|
|
Filling Speed
|
30-60 Bottles / Min (16 heads with volume within 50-500ml)
|
|
Precision
|
±1%
|
|
Work Pressure
|
0.5-0.7MPA
|
|
Air Consumption
|
0.5M3/ Min
|
|
Overall Dimensions
|
2000X800X1750mm
|
|
Weight
|
750KG
|
Application for Automatic Linear Liquid Filling Machine
This automatic bottle filling machine is suitable for filling oil or oil similar like,such as edible or engine oil, coconut milk, juice, water shampoo and so on. It widely used in food, medicine, pharmaceutical, chemical, cosmetic, pesticide and other refined chemistry industry. It is able to integrate to other matched machine in bottling line, fully complete and intelligence control advantage.
Guangzhou Mingna packaging machinery Co.,ltd, a modern sole proprietorship located in Guangzhou, is a professional packing machine manufacturer.We engaged in R&D, design, manufacturing and sales as well as after-sales service for 15 years.We has abtained the ISO9001:2000 international quality system certification and the approval of relevant departments in our state.
We are well known for our superior quality and service in the field of automatic packaging machines including sealing machines,packaging machines,filling machines,filling and sealing machines,code inject printer so on. Our products are widely used a lot of industries, such as foodstuff, daily chemicals, medicine and pesticides.And Our machines have exported to more than 100 countries and regions including East Asia, Southeast Asia, Europe, America and he Middle East and we formed a complete sales and customer service network in China.
Equipped with excellent equipment, advance design and assembly line, our company pursues the operation philosophy of " Efficiency by management, survival by quality, and development by reputation", and actively improves the quality and values of products, adhering to the customer-centric and win-win business philosophy.
In future, we will continuously keeps forging ahead, innovative and expanding to strive for the top to meet different customers' requirements. We are confident that you will benefit from our high quality products and excellent services. Looking forward to establishing long-term business relationships with customers from all around the world and making progress together, we welcome your presence and suggestion.
