Quick Details
Description
- Condition: New
- CNC or Not: CNC
- Place of Origin: Shandong, China (Mainland)
- Brand Name: tianjiao
- Model Number: tj1325
- Voltage: 380v
- Power(W): 6kw
- Dimension(L*W*H): 300*200*170cm
- Weight: 1.6t
- Certification: ce
- Warranty: one year
- After-sales Service Provided: Engineers available to service machinery overseas
- Guide Rail: PMI square linear guide rail
- motor: japan servo motor
- Gantry:: heavy and stable gantry
- Spindle Speed: 18000 r/min
- Software: type3, Artcam, Ucancametc
- rack and pinion: helical
- table steel: 8mm
- spindle: 4.5kw air cooling
- working table: vacuum table
- control: DSP /Nc studio
Main features:
1. Helical Racks and pinion:Compared with straight racks, helical racks run quieter , especially at high speeds, and increase higher load carrying capacity
2 Top brand guide rail from the world, HIWIN /PMI 20mm guide rail, with dust proof function and free of lubrication lifetime.
3. Imported high precision ball screw with big lead.
4 T-slot table could use both vauum pump and clamps.
5 vacuum pump with big suction performance.
6 Table steel thickness is 4mm or 6mm ,8mm according the customers’choice.
Technical parameter
|

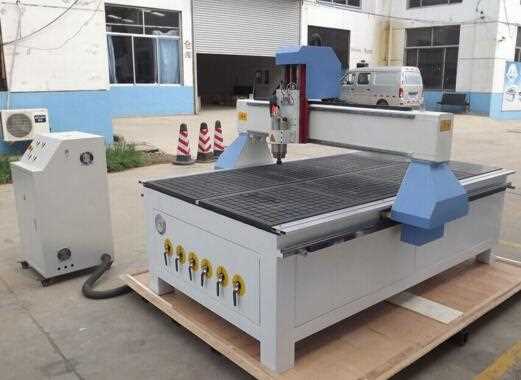

CNC Wood Router
|
|
|
|
Configuration
|
Parameter
|
Option
|
|
Model
|
TJ 1325
|
6090/1212/1224/1390 etc.
|
|
Working area
|
1300*2500*200mm
|
1300*2500*300
|
|
Spindle
|
4.5KW
|
6KW/9KW for option
|
|
Lathe bed
|
T slot heavy profile steel& Vacuum adsorption
|
|
|
X-Y-Z Structure:
|
X/Y axis:Rack and Pinion
Z axis: Taiwan Ball screw
|
|
|
Control system
|
DSP
|
NC-Studio,Mach3,Syntec for choose
|
|
Cooling system
|
Italy Air cooling
|
Domastic water cooling
|
|
Cutting speed
|
32000mm/min
|
According to the material
|
|
Engraving speed
|
25000mm/min
|
|
Rail
|
Taiwan HIWIN/PMI square linear guide rail
|
|
|
Drive motor
|
Japan servo motor/Step motor
|
Yaskawa/ Leadshine860 /yako2811
|
|
Spindle speed
|
0-18000rpm/min
|
|
|
Software
|
Type3/Artcam/Wentai/Ucancam/
|
|
|
Dust Collector Power
|
3KW
|
|
|
Vacuum pum
|
5.5KW
|
|
|
Inverter
|
Delta inverter(5.5KW)
|
FULING OR SIFANG
|
|
Command
|
G code
|
|
|
Repositioning Accuracy
|
0.05mm
|
|
|
Voltage
|
AC380V/3PH/50Hz
|
|
|
Running Environment
|
Temperature:0-45°C
Humidity:5%-95%
|
|
Suitable Materials and Industrial Applications
Furniture Decoration Industry,Wood Products Processing,Musical Instrument Industry,Artwork,Electronic Industry
Jinan Tian Jiao Machinery Manufacture Co., Ltd. specializes in developing and manufacturing Mechanical CNC routers, CNC Laser machines, Plasma cutting machines, cutting plotters and other machines. We provide global market with high quality CNC equipment. We are a leading company in this field, being confident in offering the best service and best quality.
With many years' hard work and perfect management system, we have classified our products into several categories: woodworking machines, advertising machines, ATC machines, stone working machines, plasma cutting machines, laser machines and plotters. We can also customize products and offer OEM service. Our products have been exported to many overseas countries, gaining good comments.
We hope to be your good, long-term and honest partner. Wish you can get joy and satisfaction from our products and service.
