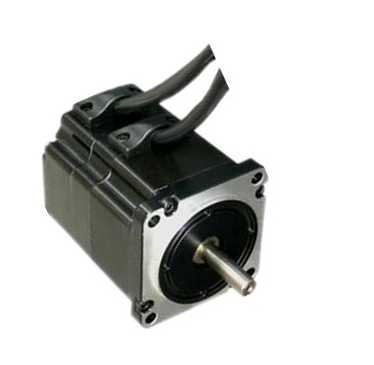

• 310VDC 313W 1n. M 3000rpm Electrical DC Motor

310VDC 313W 1n. M 3000rpm Electrical DC Motor

We can produce motor according to customer's requirements.

Product Details

Quick Details

Description



Model: 70BL3A90
VOLTAGE: 310V
POWER: 313W
SPEED: 3000RPM
CURRENT: 1.4A
TORQUE: 1N. M
NUMBER OF POLES: 8
WINDING CLASS: B
MOTOR LENGTH: 116mm
MOTOR WEIGHT: 2.1 KG

Remark:

1. We can produce motor according to customer's requirements.

2.Can match encoder.








70BL3A60 70BL3A90 70BL3A120
Specification

Unit

Rated voltage U V +24 +310 +310
Rated out power P out W 157 313 470
Rated speed  n N rpm 3000
Rated current I N A 8.8 1.4 2.0
Rated torque T N N.m 0.5 1.0 1.5
Peak current I P A 26.5 4.2 6.0
Peak torque  T p N.m 1.5 3.0 4.5
Voltage constant K E V/ Krpm 6.3 81 81
Torque constant K T N.m/A 0.06 0.77 0.77
Number of poles N P

8
Winding class



B
Motor Length L mm 86 116 149
Motor weight

Kg 1.3 2.1 2.8



310VDC 313W 1n. M 3000rpm Electrical DC Motor

Company Profile

Zhejiang Sanmen Feida Electric Appliance Co., Ltd. (also Sanmen Switch Factory) is located at the side of Sanmen Bay. It covers an area of more than 12, 000 square meters, of which there is a floor area of more than 7, 000 square meters. Fixed assets are more than 15 million RMB. Currently, we have a total of more than 100 staffs, and have 180 sets of main equipments and complete testing equipments.

Our main products are YPZ series self-brake disk-shape triphase asynchronous motors, ABR19 series thermal protectors, KSD series thermostat, DW45 and DW48 special motors for circuit-breakers and other micro motors. YPZ series self-brake disk-shape triphase asynchronous motors have the certificate of CE, and exported to Korea etc south-east countries and France etc Europe countries.

We take the "See to brand, satisfy for customers" as our quality policy, and carry out the ISO9001/2008 quality system standard for management, passed the ISO9001/2008 quality system authentication.
