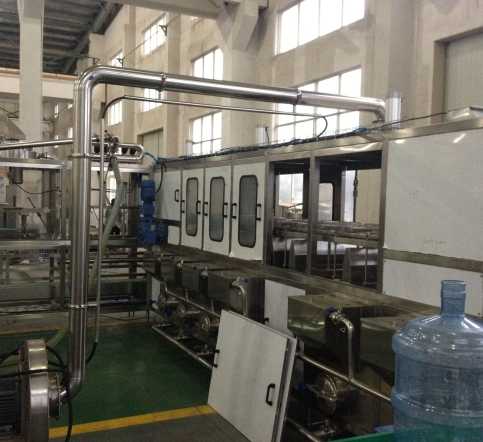

QGF automatic barrel filling machine is exclusively used in producing 5 gallon barrel water.
The production line can do automatically washing, sterilizing, filling, capping, barrel-out, with a good appearance, easy operate, low-loss energy & save water, high working efficiency. The frame of the machine is welded by 38*38 stainless steel square tube, with the characteristic of high intensity, good rigidity, light weight, aesthetic appearance, easy washing etc.
Main features
Implementing agencies is completed by the pneumatic system of automatic control procedure, automatic line detection, to achieve full automation
No bottle no washing, no bottle no filling, no bottle no capping
With change clock pulse to control filling accuracy
Only change some change part, this machine can filling 3 gallon barrel. (User should supply 3 gallon sample barrel).
The spraying nozzles of this machine import technology of USA spraying company, promoting spraying.
Adopting new type filling valve, prevent filling overflow.
Side-flow water channel, side-flow water tank, making it easy to clean the machine.
Description |
Supplier |
PLC |
Mitsubishi, Siemens |
Touch screen |
Mitsubishi, Siemens, PROFACE |
Frequency converter |
Mitsubishi, Siemens, Danfoss |
Air switch |
Schneider |
Breaker |
Siemens |
Contactor |
Siemens |
Photoelectric switch |
Omron, Keyence, P+F |
Approach switch |
Truck |
Main bearing |
NTN |
Lubrication bearing |
IGUS |
Sealings |
Sealtech |
Pneumatic components |
Camozzi |
HY-FILLING, as one of famous beverage and dairy packaging machinery manufactures in China, it is located in Zhangjiagang city which is very near Shanghai with beautiful scenery and convenient transportation. Owning the top-ranking R&D center and more than 20 senior engineers and 30 senior technicians, our products has covered all the domestic markets. Furthermore, we have exported our products all over the world, such as American, Argentina, Brazil, Russia, Poland, Turkey, Iran, South Africa, and Southeast Asia, etc, and more than 600 filling lines running all over the words till to now. We also offer our customers with the best technical plan, superior products, and perfect after-sale service to optimize the process of production, and supply our customers with reliable machinery. With persistent development, now our company is becoming larger and larger, thanks for your support and trust on our machinery. We consider "Exploring the highest technology in machinery industry; Creating a brilliant future in this field" as our company policy. And we deeply believe that tomorrow of HUAYU COMPANY will be much more brilliant.
Main Products:
1.2000-48000 BPH Mineral/Pure Water Bottling Line;
2.2000-40000 BPH Juice Bottling Line;
3.2000-40000 BPH Carbonated Beverage Bottling Line;
4.3000-40000 BPH Beer Bottling Line;
5.6000-30000BPH Aluminium Can Filling Line;
6.120-2000 Barrels/Hour 3-Gallon & 5-Gallon Filling Line;
7. Edible Oil Filling Line;
8. Aseptic Brick Packing Machine;
9. Aseptic Pouch Packing Machine (Pillow Type);
10. PET Preform Injection Machine;
11. Bottle Blow Moulding Machine;
12. Water Treatment;
13. UHT Plant;
14. Carbonating Mixer;
15. Bottle Unscrambler;
16. Film Shrink-wrapping or Carton Box Packaging Machine;
17. PA-Depalletizer;
18. Turn Key Project.
