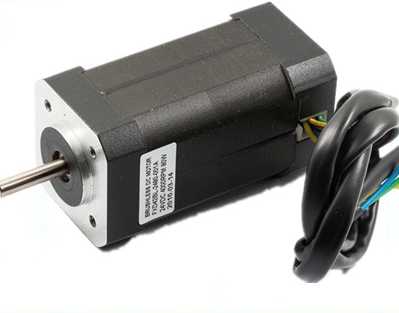

• 24 Volt Brushless DC Motor with ISO9001 Certification (FXD42BL SERIES)

24 Volt Brushless DC Motor with ISO9001 Certification (FXD42BL SERIES)

If you want some special requirement such as different power,voltage,speed and different dimentions, we can product these motors for you.

Product Details

Quick Details

Description

General Sprcification
Item  Specification
Winding type Star/Delta
Hall effect angle 120 degree electric angle
Sharf runout 0.025mm
Radial play 0.06mm/50g
End play 0.05mm/50g
Max radial force 28N/20mm from the flange
Max axial force  15N
Insulation class  Class B
IP class IP40
Dielectric strength 500VDC for one minute
Insulation resistance 100MΩmin 500VDC

Electric connection:
Lead No. Lead Color Lead Gauge Function Description
1 Red UL3266/26AWG VCC SUPPLY VOLTAGE FOR HALL SENSORS
2 Black GND GROUND FOR HALL SENSORS
3 Yellow HALL A SINGLE OF HALL A
4 Green  HALL B SINGLE OF HALL B
5 Blue HALL C SINGLE OF HALL C
1 Yellow UL3266/20AWG PHASE U MOTOR PHASE U
2 Green  PHASE V MOTOR PHASE V
3 Blue PHASE W MOTOR PHASE W
Electric Specification:
Model No. ofPhase Rated voltage Rated speed Rated torque Rated power Mass Body length
Phase VDC rpm N.m w Kg mm
FXD42BL-001A 3   24 4000 625 26 0.25 40
FXD42BL-002A 3   24 4000 1250 52.5 0.35 60
FXD42BL-003A 3   24 4000 1850 77.5 0.45 80
FXD42BL-004A 3   24 4000 2500 105 0.55 100






24 Volt Brushless DC Motor with ISO9001 Certification (FXD42BL SERIES)

Company Profile

Changzhou fuxianda Electromechanical Co., Ltd is established in November 2011. Our company is a factory with products Brushless DC motors, Hybrid stepper motors, gearmotors and matched drivers.

Changzhou fuxianda Electromechanical Co., Ltd also have several joint venture companies who specialized in the production of AC servo motor, PM stepper motor, PM synchronous motor and Brush DC motor. We export our motors to more than 10 countries such as United States, France Italy, South Africa and Russia.

The Fuxianda product line is sold to major manufacturing companies for industry for automation, medical and health care equipment, printer machines, packing devices, information technology, household appliance products, and automobile.

We have an engineering team with many years of experience in application engineering, design engineering with the latest advances equipment. Our engineering staff provides the finest quality product with service after the product is delivered to our customers.

The possession of many excellent mechanical-electronical engineers and marketing personnel make our company skillful at providing customers with the plan of products integration.

Most of our products are CE approved. Our company adheres to principles of "Providing green products" and all of our products are RoHS compliant.

As a global supplier, Changzhou fuxianda electromechanical Co., Ltd scrupulously follows the guideline of international commercial rules and practices. We have achieved our reputation of cooperation with our customers over the years. Our Goal is to "Win the market with quality and service" which is the common voice of every Changzhou fuxianda Motor team member.

Good quality, reasonable price, on time delivery, efficient service is our pursuit. We are looking forward to cooperating with more friends in the future.
