Quick Details
Parameter
Total volume of mixing chamber : 3L
Working volume of mixing chamber : 1L
Driving motor power : 4KW
Rotational speed of the rotor (front/rear) : 12~58r/min
Pressure of compressed air : 0.5-0.8Mpa
Capacity of compressed air : ≥0.3M3/min
Pressure of Cooling Water (rubber mixing) : 0.2-0.4Mpa
Pressure of Heating Steam (plastics mixing) : 0.5-0.8Mpa
Tilting Angle : ≤140°
Description
1L rubber dispersion kneader (internal mixer)
|
Machine Type
|
internal mixer, kneader, kneading mixer
|
|
Model NO.
|
X(S)N-1×12~58
|
|
Total Volume of Mixing Chamber
|
L
|
3
|
|
Working Volume of Mixing Chamber
|
L
|
1
|
|
Driving Motor Power
|
Kw
|
4
|
|
Tilting Motor Power
|
Kw
|
Manual
|
|
Tilting Angle
|
。
|
≤140
|
|
Rotational Speed of The Rotor (front/rear)
|
r/min
|
12~58
|
|
Pressure of Compressed Air
|
Mpa
|
0.5-0.8
|
|
Capacity of Compressed Air
|
M³/min
|
≥0.3
|
|
Pressure of Cooling Water (rubber mixing)
|
Mpa
|
0.2-0.4
|
|
Pressure of Heating Steam (plastics mixing)
|
Mpa
|
0.5-0.8
|
|
Overall Dimension
|
L
|
mm
|
1400
|
|
W
|
760
|
|
H
|
1914
|
|
Weight
|
Kg
|
800
|
Application of Dispersion Mixer (Kneader):
The dispersion mixer (kneader) is widely used for rubber or plastics mixing and plasticizing, or rubber and plastic blending. It is a type of economical, energy-saving and environmental friendly mixing equipment for rubber and plastic stock processing.
1L rubber (plastic) dispersion mixer (kneader) is a test version that widely used in laboratory. According to customers’ different production requirements, we can provide corresponding equipment modification.
Trade Information:
Production Lead Time: 35-45 days after confirming the order.
Payment Term: 30% TT deposit, 70% balance payment before shipment. (Negotiable)
Standard Packaging: Covered with moisture proof plastic film.
Customized Packaging: Pallet, wooden case, or other required package is available.
Shipment: container by sea.
Portof Loading: Dalian, China.
OEM available
Technical Service:

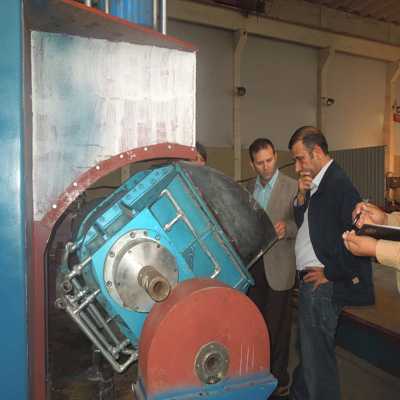

1. Before delivery, arrange test-run and adjust the equipment in our workshop, till there is no problem. According to customers’ requirement, provide necessary photos or videos of specific steps.
2. After delivery, if customers have problem on installation, adjustment, and maintenance, we can provide technical support after analyzing photos or videos sent by customers. If necessary, our engineers can provide overseas service. Correlative charges need to be borne by customers.

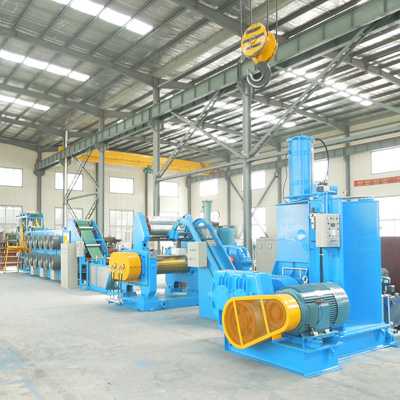

Dalian Aoqian General Rubber & Plastic Machinery Co., Ltd is a professional manufacturer and supplier of rubber and plastic machinery, the production base of which locates in the city of Dalian. Since Aoqian General was established in 2011, we have become to an important member of the China rubber and plastic machinery industry.
Our main products are:
(1). 1L~200L Rubber (Plastic) Dispersion Kneader
(2). 30L, 60L, 90L, and 120L Rubber (Plastic) Banbury Mixer
(3). Φ160~Φ660 Two Rolls Rubber Open Mixing Mill
(4). Φ300~Φ610 Three Rolls Rubber Calender
(5). Φ300~Φ610 Four Rolls Rubber Calender
(6). Cold Feed Rubber Extruder
(7). Pin Barrel Cold Feed Rubber Extruder
(8). Rubber Vacuum Extruder
(9). Hot Feed Rubber Extruder
(10). Rubber Vulcanizing Hot Press
(11). Φ450~Φ480 Rubber Refining Mills
(12). Φ560 Rubber Cracker Mills
(13). 500mm & 600mm Hanging Type Batch-off Cooling Machine
(14). 500mm & 600mm Mesh Belt Type Batch-off Cooling Machine
(15). Φ350 & Φ380 Double Cones Extruding and Sheeting Machine
(16). Φ75 & Φ125 Air-cooling Plastic Pelletizing Machine
With the features of complete function, advanced and reliable performance, and simple operation, Aoqian General rubber & plastic machineries are currently sold to more than 20 provinces and cities, and are widely exported to countries and areas in Southeast Asia, Middle East, West Africa, and South America, won customers’ praise.
We are looking forward to get in cooperation relations with more friends in this line. For inquiry, please feel free to visit our official website of Aoqian will be your reliable rubber and plastic machinery supplier.
