Quick Details
Description
- Place of Origin: Henan, China (Mainland)
- Brand Name: Asian Sun
- Model Number: S9,S10,S11
- Usage: Power
- Phase: Three
- Coil Structure: Toroidal
- Coil Number: Autotransformer
- Key word: Oil Immersed Power Transformer 11KV 1600KVA
- Rated capacity: 10kva~5000kva
- Primary voltage: Less than 35kv (as customer request)
- Secondary voltage: 400v or 11kv (as customer request)
- Frequence: 50HZ or 60HZ
- Rated Current: 400A 630A
- Winding material: Copper
- Type: Oil
- Standard: Compliance to IEC
- OEM: Accept
Specifications

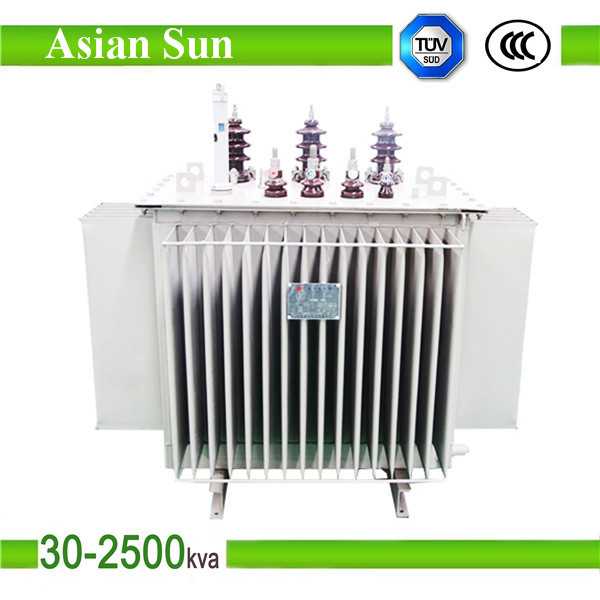

1.Oil Immersed Power Transformer 11KV 1600KVA
2.Voltage:10KV,11KV,33KV,35KV/415V,400V
3.100% capacity
TECHNICAL PARAMETERS:
1) Rated Power: 30~2500kVA
2)Rated HV: 6KV,6.3KV, 10KV, 10.5KV,11KV,15KV,20KV,22KV,33KV 35KV,36KV
3)Rated LV: 0.4kV,0.415KV,0.38KV
4)Phase No. :single or three;
5)Rated frequency: 50Hzor 60 Hz;
6)Vector group: Dyn11, Yyn0 or others;
7)Short circuit impedance: 4%, 4.5% ,6% or others in accordance to client needs;
8)Tapping voltage regulation type: off-load or on-load;
9)Tapping range: +/-2*2.5% / 5%or others in according to client needs;
10)Cooling type: oil nature, oil cooling

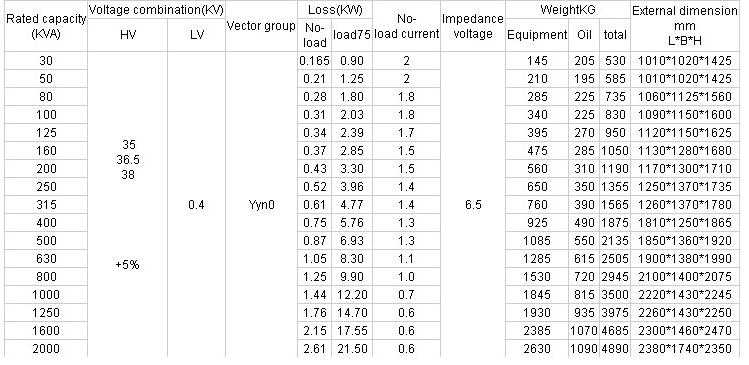

Technical parameters of distribution transformer
Luoyang Yari Industry Group Co., Ltd. was established in 2006 with RMB 50 million registerde capital in Luoyang, Henan Province, China. Now our total assets is RMB 300 million. The company covers an area 61,081 square meters, and has 4 affiliates with more than 300 employees including 15 engineers and technicians.
We are specialized in power distribution equipments, especially in power cables. We have more than 200 different kinds of products. There are four major series--- power transformer, power cable, electric round aluminum rod, photo-voltaic bracket. We have been in this line for 8 years. Due to the competitive quality and price, we gain high reputation at domestic. Our customers include China National Electricity, China State Grid, CHALCO, etc.. Now we are striving to develop the world market.
We have a group of management and technical talented persons with high-quality, profession, cautious and conscientious marketing team. Now our company has got National Security Certificate, ISO9001 Quality Certification, China Compulsory Certification CCC, Internation Standard Product Marketing Certificate etc.
Our tenet is to take the sincerity as fundamental, to take the customer as center. Win-win cooperation is the core idea of our company culture. All the staffs are striving for developing Chinese national industry with their continued pioneering spirit. Warmly welcome friends all over the world to cooperate with us.
