Quick Details
Description
- Model NO.: S9 11KV
- Phase: Three
- Cooling Method: Oil-immersed Type Transformer
- Certification: ISO9001-2000
- Frequency Characteristics: Power Frequency
- Brand: L&R
- Transport Package: Wooden Package
- Origin: China
- Application: Power
- Core: Core-type Transformer
- Winding Type: Two-winding Transformer
- Usage: Power Transformer, Distribution Transformer
- Shape of Core: Lamination
- Trademark: L&R
- Specification: S9-250/11-0.4
- HS Code: 8504210000

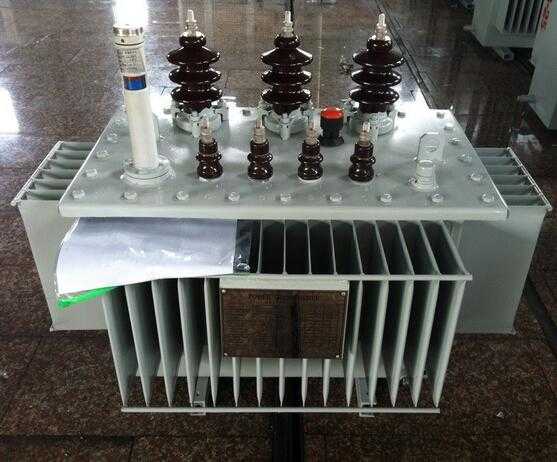

The three-phase oil immersed transformer applieds new type insulation structure and improves the ability of short-circuit resistance.
Transformer normal service conditions:
The height above the sea level is below 1000m;
Ambient temperature:
Highest air temperature +40ºC
Highest daily average air temperature +30ºC
Highest annual average aire temperature +20ºC
Lowest outdoor air temperature -25ºC
Zhejiang Lawrence Electric Co., Ltd (referred as L&R) is located in Zhejiang China. It is composed by some branch companies, we also invested some domestic and foreign EPC projects.
L&R has possessed one of the major suppliers in the power and electrical fields for electrical
Projects in the world. Almost all products manufactured by the L&R members have been certified
By KEMA, CE, SGS and CNAS approved Lab.
L&R have been supplying Zinc Oxide Varistors, Surge Arresters, insulators, Fuse Cutouts, Air
Break switch, Load break switch, Vacuum Circuit Breaker, Isolators, Transformers, Switchgear,
Earth rods, Stay Rods, Pole Make Off, Guy grip, stay wire, Crossarm, clamp, bolts, Line hardware
And so on. Our member companies are required to have a long term proven track record of meeting contract
Obligations, superior quality, current technology and state-of-the-art manufacturing facilities.
Over a period of 10 years, our business has extended to South America, Middle East, Southeast
Asia, Africa, and other regions, and we had our sale agent and 4S maintenance company in some countries. To achieve the strategic objective of development, we are seeking for partners
For our sale agent and maintenance company in all the worldwide.
