Quick Details
Description
Product description

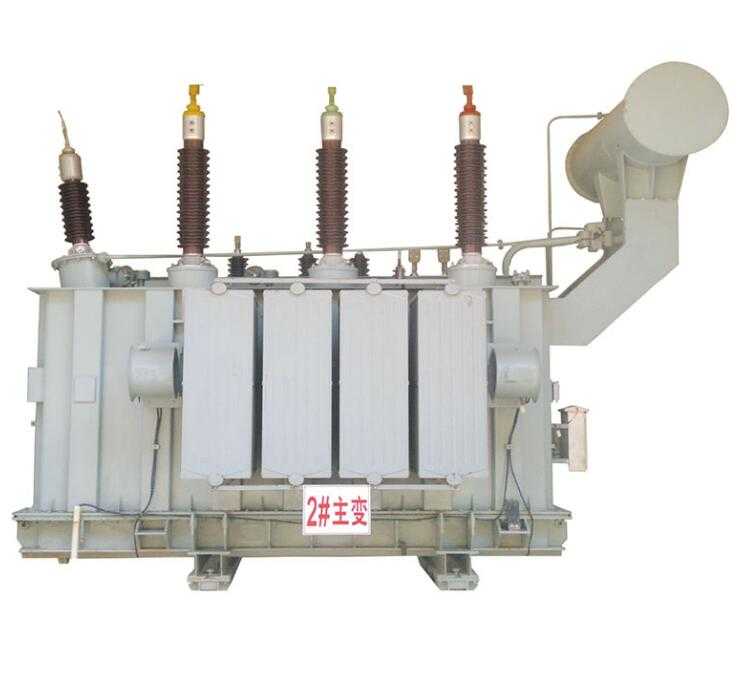

110KV oil immersed on-load regulation power transformer has a seires of big changes in material, technical and construction with the characters of small size, light weight, high efficiency with low loss and low noise, stable opable operation which cutting down large number of loss from energy GRID and minising operation charge, improving the industrial economic benefit. It is used in power plant, transformer substation, big-sized and chemistry factory and etc. The product is according to National and IEC standards.
Main technical data for 110KV S(F)9, S(F)10, S(F)11 Series three-phase two winding transformer with no-load tap changer
|
Rated
power
(KVA)
|
High
Voltage
(KV)
|
H.V.Tap
(KVA)
|
Low
Voltage
(KV)
|
Connection
symbol
|
Short-
Circuit
Impedance
(%)
|
No-Load Loss
(W)
|
On-Load Loss
(W)
|
No-Load
Current
(%)
|
|
The 9
type
of loss
|
The 10
type
of loss
|
The 11
type
of loss
|
The 9
type
of loss
|
The 10
type
of loss
|
The 11
type
of loss
|
|
6300
|
110
121
(132)
|
±2×2.5%
|
6.3
6.6
10.5
11
(20)
(34.5)
|
YNd11
|
10.5
|
9.5
|
8.5
|
7.5
|
36.9
|
34.9
|
34.9
|
0.69
|
|
8000
|
11.4
|
10.2
|
9
|
45
|
42.5
|
42.5
|
0.69
|
|
10000
|
13.3
|
11.9
|
10.5
|
53.1
|
50.2
|
50.2
|
0.64
|
|
12500
|
15.7
|
14.1
|
12.4
|
63
|
59.5
|
59.5
|
0.64
|
|
16000
|
19
|
17
|
15
|
77.4
|
73.1
|
73.1
|
0.59
|
|
20000
|
22.6
|
20.2
|
17.8
|
93.6
|
88.4
|
88.4
|
0.59
|
|
25000
|
26.6
|
23.8
|
21
|
110.7
|
105
|
105
|
0.54
|
|
31500
|
31.7
|
28.4
|
25
|
133.2
|
126
|
126
|
0.54
|
|
40000
|
37.8
|
33.9
|
29.9
|
156.6
|
148
|
148
|
0.59
|
|
50000
|
44.7
|
40
|
35.3
|
189
|
178.5
|
178.5
|
0.52
|
|
63000
|
53.1
|
47.5
|
41.9
|
234
|
221
|
221
|
0.48
|
|
75000
|
12~14
|
59
|
53.1
|
47.2
|
278
|
264.1
|
264.1
|
0.38
|
|
90000
|
68
|
61.2
|
54.4
|
320
|
304
|
304
|
0.34
|
|
120000
|
84.8
|
76.4
|
67.9
|
397
|
377.2
|
377.2
|
0.31
|
|
150000
|
100.2
|
90.2
|
80.2
|
472
|
448.5
|
448.5
|
0.27
|
|
180000
|
112.5
|
101.3
|
90
|
532
|
505.4
|
505.4
|
0.23
|
Our company is specialized in the production of power transformers, intermediate frequency and rectifier transformers, arc furnace transformers, reactors and wires, and we also provide the special made transformers according to the demands of clients.
Our company was founded in 1999, and we are known as a star private enterprise. After a decade's development, we have had an excellent reputation in the field because of our reliable product quality and safety. We also have great reputations among Chinese power sectors and steel enterprises.
Our company is located in the characteristic industrial zone of Jiangshan, Zhejiang province, 20km far away from the Quzhou Airport and on the right of the highway. Thus, the transportation is very convenient.
There are more than 100 staff members in our company, including 8 senior engineers, 20 engineers (state mechanical or electrical) and 58 engineering technicians.
Also we have highly developed new production and management capabilities. Our manufacturing facilities cover an area of 54,000 square meters, and we have a construction area of 24,000 square meters. Our capital asserts are about RMB 40,000,000. Complete production and advanced testing equipment, with 50-stere large-size vacuum drying equipment for transformers and 30-ton cranes makes our output value exceed a billion Yuan.
Our corporate culture is "quality is the life of the enterprise, Credit is the soul of the enterprise". We fully implement ISO9001:2000 international standards, and have passed ISO9001-2000 certification. Product quality has been tested and approved by the national industry, and our products have been awarded as "The Distinctive, Reliable Quality of Products".
According to the two net transformations of our country, we have improved our products and increased the product technical renovation. We add more new advanced equipment and production processes to expand our workshop to promote our software and hardware to make sure that the quality of our products is even more stable and reliable.
After all, all the development and success of our company cannot be achieved without the support and trust of our customers. Here, we express our warm greetings to all customers, both new and old, and assure you of our first-class services and top-quality products.
