Quick Details
Description
- Model NO.: FXBW-110KV~132KV
- Material: Composite Polymer
- Type: A Type Insulator
- Certification: ISO9001
- Voltage: 110kv~132kv
- Specification: SGS
- HS Code: 85462090
- Application: High-voltage
- Structure: Composite Insulator
- Usage: High Voltage Power Transmission
- Color: Red
- Trademark: OEM
- Origin: Qingdao

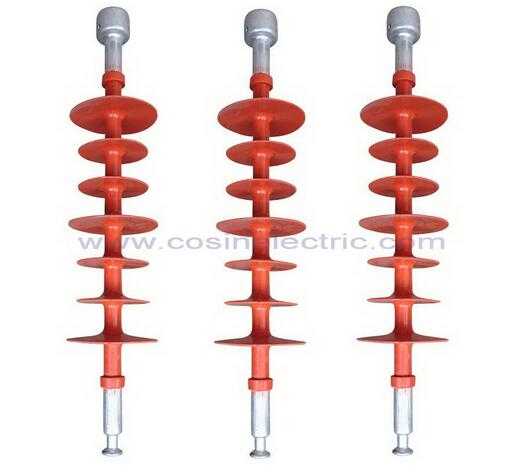

Name: High Voltage Composite insulator/Polymer insulator
Model No.: FXBW-110KV~132KV
Material:Silicon Rubber
Condition of Useof composite insulator/polymer insulator:
1. Ambient air temperatures within the range of -40 degree Celsius to +40 degree Celsius;
2. Altitude above sea level not exceeding 1, 000m; (If the altitude is higher than 1, 000, it needs adjust. )
3. Frequency of A. C. Power supply not exceeding 100Hz;
4. The mechanical load no more than the rated value.
Characteristics of composite insulator/polymer insulator:
-Small volume and light weight, easy to transport and install
-The superior in performance and high intensity mechanical enhance reliability of power line
-Extraordinary hydrophobic and resistance to contamination
-Long-duration resistance aging and leakage tracking.
|
Code No
|
Catalogue No
|
Rated Voltage
(KV)
|
Specified Mechanical
Load(KN)
|
Section Length
(mm)
|
Min Arc Distance
(mm)
|
Min creepage Distance
(mm)
|
Lightning Impulse
Withstand (KV)
|
Power Frequence
Withstand(wet) (KV)
|
|
FXBW4-110/120
|
QCE-110/120BS
|
110
|
120
|
1320
|
1000
|
3150
|
550
|
230
|
|
FXBW4-132/120
|
QCE-132/120BS
|
132
|
120
|
1600
|
1369
|
5100
|
650
|
340
|
Experience: 16 years producing experience from 1999-2015 for insulator and line hardware
Product: Composite insulator, glass insulator and ceramic insulator
SML: From 40KN to 550KN From AC insulator to DC insulator.
Package: Exported free-fumigation
Quality control: Can do all the test according to IEC
Quality control System: Exactly according to ISO9001: 2000
Exporting Market: USA, Argentina, Mexico, Italy, South Africa, Turkey, Vietnam, France, Chile, etc.
Engineer term: Have 12 engineers to reply all your questions and offer professional service.
Sale term: All the sale man have been trained every month. And offer best service.
