Quick Details
Description
- Dtandards: GB1094-1996; JB/T10088-2004; GB/T6451-2008; EQV IEC6 0076
2. Voltage Grade: 6, 11kV
3. Voltage Regukation Mode: Off circuit tap changing or on load tap changing
4. tapping Range: ±5%, ±2×2.5%, ±4×2.5% or others
5. Frequency: 50Hz; 60Hz
6. Phase: Three phase
7. Connection Sign: Yyn0, Dyn11 or others
8. Short Circuit Impedance: Standard impedance (For details see technical data sheet)
Features:

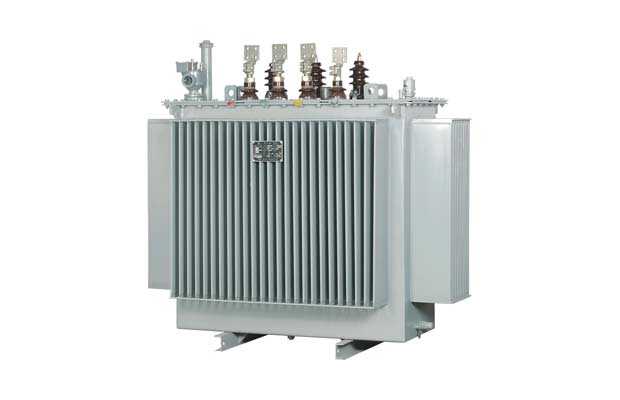

New type of S11-M series three phased oil-immersed transformer uses new structures of insulation and anti-shortcut etc. Which approach advanced international standards Comparing to S7 series, the no load loss decreases 10.25% in average, no load current decreases 37.9%, load loss decreases 22.4% in average, it is the renew products for saving energy
Low losses, energy saving
Core is in round form, multi-stage, and entire tilted three stages seaming and lapping structure
High and low voltage coils are winding with oxygen free copper coil. All high voltage coils are made with several layered bucket structure
Reasonable structure
New typing parts and fastener
|
Rated Capacity (KVA)
|
Voltage combination
|
Connection
Symbol
|
No-load loss (W)
|
On-load loss(w) 75
|
No-load
Current %
|
Shirt-circuit Impedance
%
|
|
HV (kv)
|
Tapping range
|
LV (kv)
|
|
30
|
6
6.3
10
10.5
11
|
±5%
±2x2.5%
|
0.4
|
Yyn0
Dyn11
|
100
|
600
|
0.80
|
4
|
|
50
|
130
|
870
|
0.75
|
|
63
|
150
|
1040
|
0.70
|
|
80
|
180
|
1250
|
0.70
|
|
100
|
200
|
1500
|
0.65
|
|
125
|
240
|
1800
|
0.65
|
|
160
|
270
|
2200
|
0.60
|
|
200
|
330
|
2600
|
0.60
|
|
250
|
400
|
3050
|
0.50
|
|
315
|
480
|
3650
|
0.45
|
|
400
|
570
|
4300
|
0.40
|
|
500
|
680
|
5100
|
0.40
|
|
630
|
810
|
6200
|
0.40
|
4.5
|
|
800
|
980
|
7500
|
0.40
|
|
1000
|
1150
|
10300
|
0.30
|
|
1250
|
1360
|
12000
|
0.30
|
|
1600
|
1640
|
14500
|
0.30
|
|
Note: we can design and manufacture special transformer as customers' requirements.
Ordering Instruction: 1.product model; 2.rated capacity; 3.voltage range; 4.regulation range; 5.frequency; 6.connection symbol; 7. technical requirements for special transformer.
|
