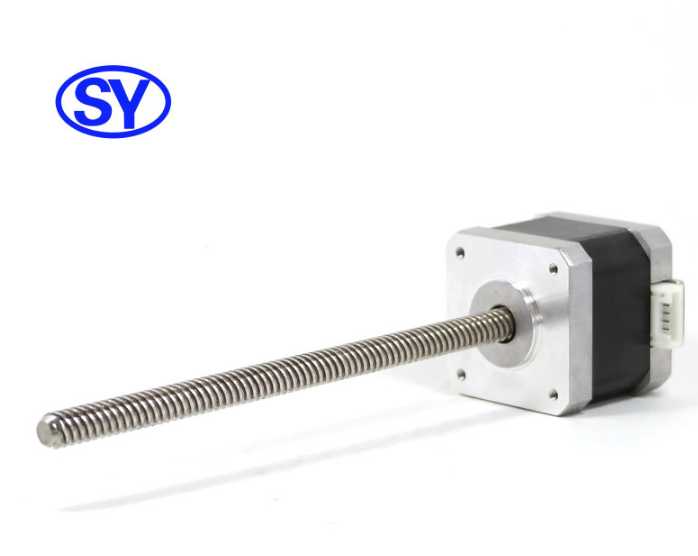

Product Description:
1. Specifications:
Step Angle: 1.8°± 5% full step, no load
Shaft End Length: 141mm (5.55in)
Shaft: Screw Shaft, Customized Shaft Length
Connectors: Connectors, Lead Wires
Motor Length: 40mm (1.57in)
Holding Torque: 420mNm (59.47oz-in)
Rated Current: 1.0 A DC
Resistance per Phase: 6.7ohm
Inductance per Phase: 9.8mH
Ambient Temperature: -24ºC- +60ºC
Relative humidity: 90% MAX
Resistance Accuracy: ± 10%
Insulation Resistance: Larger than 100MΩ 500V DC
Dielectric Strength: 600V AC for 1S, leakage current less than 1mA
2. Note:
Performance and parameters can be customized, just simply send your motor diagram or samples to us, the competitive price will be sent to you soon for your reference.
Prices is decided by the motor's holding torque, Body length and other data, contact us and get the latest the price list.
3.Payment term:
T/T in advance, 30% deposit, 70% balance before shipment.
